Item Description
WLAN features Compliance with IEEE 802.11ax and compatibility with IEEE 802.11a/b/g/n/ac/ac wave2
Maximum ratio combining (MRC)
Space time block code (STBC)
Cyclic delay diversity (CDD)/Cyclic shift diversity (CSD)
Beamforming
Item Description
MU-MIMO
Compliance with 1024-QAM and compatibility with 256-QAM/64-QAM/16-QAM/8-QAM/QPSK/BPSK
802.11 dynamic frequency selection (DFS)
Short GI in 20 MHz, 40 MHz, 80 MHz, and 160 MHz modes
Wi-Fi Multimedia (WMM)
WLAN channel management and channel rate adjustment
NOTE
For detailed management channels, see Country Code & Channel Compliance Table.
Separate service set identifier (SSID) hiding configuration for each AP, supporting Chinese SSIDs
Unscheduled automatic power save delivery (U-APSD)
Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode
Extended service set (ESS) in Fit AP mode
802.11k and 802.11v smart roaming
802.11r fast roaming
Network features Compliance with IEEE 802.3ab
Auto-negotiation of the rate and duplex mode
SSID-based VLAN assignment
Management channel of the AP's uplink port in tagged or untagged mode
DHCP client, obtaining IP addresses through DHCP
STA isolation in the same VLAN
IPv4/IPv6 access control list (ACL)
Link layer discovery protocol (LLDP)
Uninterrupted service forwarding upon CAPWAP tunnel disconnection in Fit AP mode
Unified authentication on the WAC in Fit AP mode
Network address translation (NAT) in Fat AP mode
QoS features WMM parameter management for each radio
Queue mapping and scheduling
User-based bandwidth limiting
Adaptive bandwidth management (automatic bandwidth adjustment based on the user quantity and radio
environment) for user experience improvement
Airtime scheduling
Security features Open system authentication
WEP authentication and encryption using a 64-bit, 128-bit, 152-bit, or 192-bit encryption key
WPA2-PSK authentication and encryption
WPA2-802.1X authentication and encryption
WPA3-SAE authentication and encryption
WPA3-802.1X authentication and encryption
WPA-WPA2/WPA2-WPA3 hybrid authentication
WPA2-PPSK authentication and encryption in Fit AP mode
802.1X authentication, MAC address authentication, Portal authentication, etc.
DHCP snooping
Dynamic ARP inspection (DAI)
IP Source Guard (IPSG)
Item Description
802.11w Protected Management Frames (PMF)
DTLS encryption
Maintenance
features
Unified management and maintenance on the WAC in Fit AP mode
Automatic login, automatic configuration loading, and plug-and-play (PnP) in Fit AP mode
Automatic batch upgrade in Fit AP mode
Telnet and STelnet using SSHv2
SFTP using SSHv2
Web system-based AP management and login through HTTP or HTTPS in Fat AP mode
Real-time configuration monitoring and fast fault locating using the NMS
SNMPv1/v2/v3 in Fat AP mode
System status alarm
Network Time Protocol (NTP) in Fat AP mode
Cloud Management Mode
Item Description
WLAN features Compliance with IEEE 802.11a/b/g/n/ac/ac Wave 2/ax
Maximum ratio combining (MRC)
Space time block code (STBC)
Cyclic delay diversity (CDD)/Cyclic shift diversity (CSD)
Beamforming
MU-MIMO
Compliance with 1024-QAM and compatibility with 256-QAM/64-QAM/16-QAM/8-QAM/QPSK/BPSK
802.11 dynamic frequency selection (DFS)
Short GI in 20 MHz, 40 MHz, 80 MHz and 160 MHz modes
Priority mapping and scheduling in compliance with Wi-Fi Multimedia (WMM)
WLAN channel management and channel rate adjustment
NOTE
For detailed management channels, see Country Code & Channel Compliance Table.
Automatic channel scanning and interference avoidance
Service set identifier (SSID) hiding
Unscheduled automatic power save delivery (U-APSD)
802.11k and 802.11v smart roaming
802.11r fast roaming
Network features Compliance with IEEE 802.3ab
Auto-negotiation of the rate and duplex mode
SSID-based VLAN assignment
DHCP client, obtaining IP addresses through DHCP
STA isolation in the same VLAN
Access control list (ACL)
Unified authentication on the cloud management platform
Network address translation (NAT)
QoS features Priority mapping and scheduling in compliance with WMM
Item Description
WMM parameter management for each radio
Queue mapping and scheduling
User-based bandwidth limiting
Airtime scheduling
Security features Open system authentication
WEP authentication and encryption using a 64-bit, 128-bit, 152-bit, or 192-bit encryption key
WPA2-PSK authentication and encryption
WPA2-802.1X authentication and encryption
WPA3-SAE authentication and encryption
WPA3-802.1X authentication and encryption
WPA-WPA2/WPA2-WPA3 hybrid authentication
802.1X authentication, MAC address authentication, Portal authentication, etc.
DHCP snooping
Dynamic ARP inspection (DAI)
IP Source Guard (IPSG)
Maintenance
features
Unified management and maintenance on the cloud management platform
Batch upgrade
Telnet and STelnet using SSHv2
SFTP using SSHv2
Web-based NMS, and login through HTTP or HTTPS
Real-time configuration monitoring and fast fault locating using the NMS
System status alarm
Network Time Protocol (NTP)
Product Specifications
Item Description

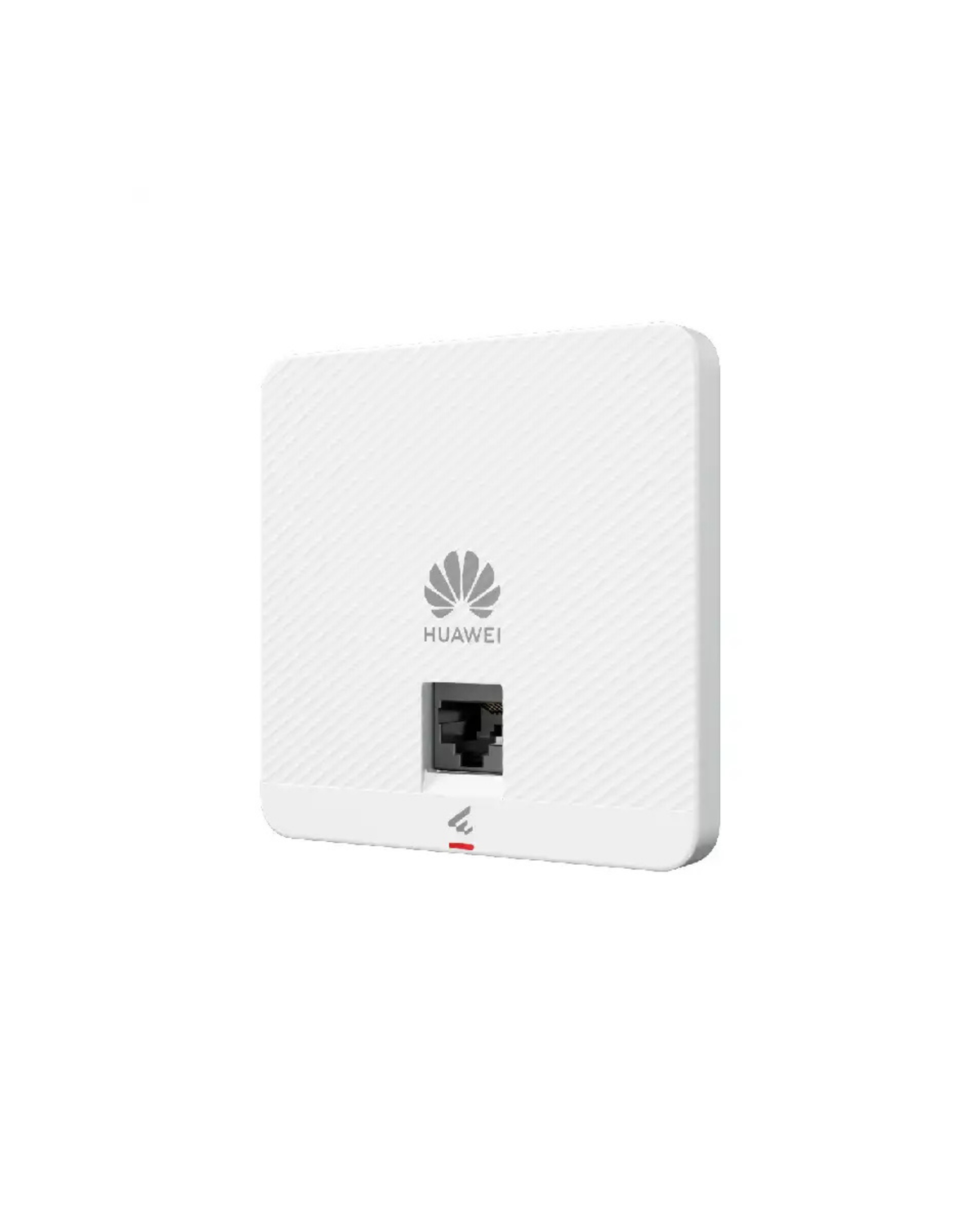

Technical specifications Dimensions (H x W x D) 86 mm x 86 mm x 42.5 mm
Weight 0.14 kg

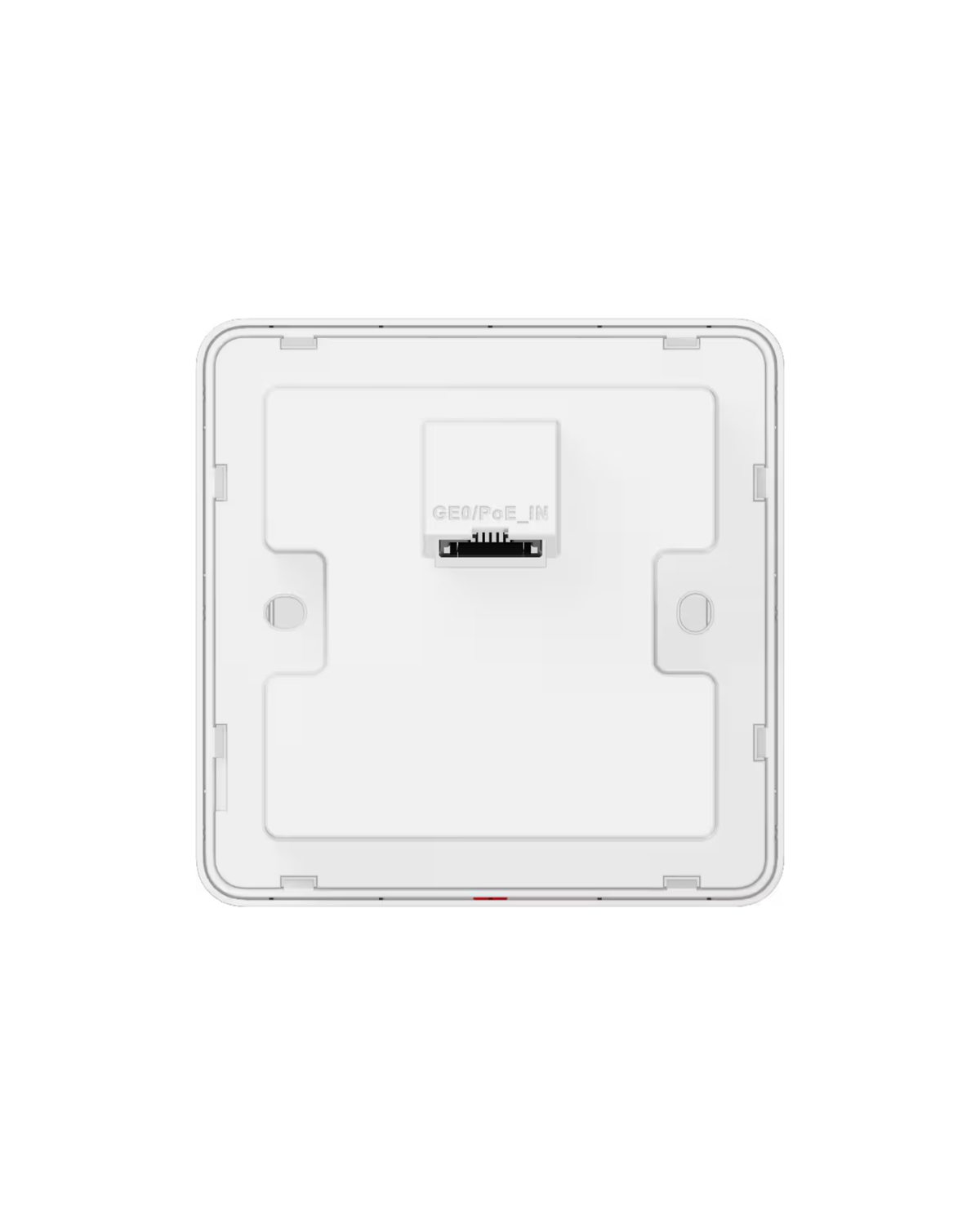

Port Uplink: 1 x 100M/GE electrical port
Downlink: 1 x 100M/GE electrical port
NOTE
The uplink GE electrical port supports PoE IN.
LED indicator Indicates the power-on, startup, running, alarm, and fault states of the system.
Power specifications Power input  PoE power supply: in compliance with IEEE 802.3af
Maximum power
consumption
 9.1 W
NOTE
The actual maximum power consumption depends on local laws and
regulations.
Item Description
Environmental
specifications
Operating temperature 0°C to 40°C (From 1800 m to 5000 m, the maximum temperature of the device
decreases by 1°C for every 300 m increase in altitude.)
NOTE
The temperature on part of the AP shell may be higher than its operating
temperature upper limit. The AP's performance will not be affected as long
as the shell temperature complies with the safety standards.
Storage temperature –40°C to +70°C
Operating humidity 5% to 95% (non-condensing)
Altitude –60 m to +5000 m
Atmospheric pressure 53 kPa to 106 kPa
Radio specifications Antenna type Built-in smart antennas
Antenna gain 2.4 GHz: 3 dBi
5 GHz: 2 dBi
NOTE
The preceding gains are the peak gains of a single antenna.
Maximum quantity of
SSIDs
16
Maximum number of
access STAs
128
NOTE
The actual number of users varies according to the environment.
Maximum transmit power 2.4 GHz: 20 dBm (combined power)
5 GHz: 20 dBm (combined power)
NOTE
The actual transmit power varies according to local laws and regulations.
Power adjustment
increment
1 dBm
Standards Compliance
Item Description
Safety
standards
 UL 62368-1
 EN 62368-1
 IEC 62368-1
 SCA 62368-1
 GB 4943.1
Radio
standards
 ETSI EN 300 328  ETSI EN 301 893  AS/NZS 4268
EMC
standards
 EN 301 489-1
 EN 301 489-17
 EN 60601-1-1
 GB 9254
 GB 17625.1
 GB 17625.2
 IEC/EN61000-4-2
 IEC/EN 61000-4-3
 IEC/EN 61000-4-4
Item Description
 EN 60601-1-2
 EN 55024
 EN 55032
 EN 55035
 AS/NZS CISPR32
 CISPR 24
 CISPR 32
 CISPR 35
 IEC/EN 61000-4-5
 IEC/EN 61000-4-6
 ICES-003
IEEE
standards
 IEEE 802.11a/b/g
 IEEE 802.11n
 IEEE 802.11ac
 IEEE 802.11ax
 IEEE 802.11h
 IEEE 802.11d
 IEEE 802.11e
 IEEE 802.11k
 IEEE 802.11v
 IEEE 802.11w
 IEEE 802.11r
Security
standards
 802.11i, Wi-Fi Protected Access (WPA), WPA2, WPA2-Enterprise, WPA2-PSK, WPA3
 802.1X
 Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP), WEP, Open
 EAP Type(s)
EMF
standards
 EN 62311  EN 50385
RoHS
standards
 Directive 2002/95/EC & 2011/65/EU
 (EU)2015/863
Reach
standards
 Regulation 1907/2006/EC
WEEE
standards
 Directive 2002/96/EC & 2012/19/EU
