General

Model

OCBS-T209

Color

White or black

Interfaces

RS-232; USB HID; USB COM;HID POS available as per customer’s needs

Cable

1.8M

Reading Indicators

LED/Buzzer(adjustable tone)

Input Voltage

5 VDC (+/- 10%)/500mA

current

Working current(Standard): < 300 mA  Standby current(Standard): < 210 mA

OS Support

Microsoft Windows/Linux/Android/IOS/MacOS

ESD protection(Air discharge)

8 kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface

Performance

Image sensor

640*480 pixels

Light Source

LED White LED

Motion tolerance

2M/sec

Scan speed

120fps/s

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Print contrast ratio(minimum)

≥15%

Ambient light

0 -100,000 lux

Resolution(maximum)

0.102mm / 4mils

Typical depth of Filed

Precision    Barcode    Depth of Filed
5mil         CODE128  0mm—70mm
5mil          EAN-13   0mm—70mm
4mil          EAN-13   0mm—240mm
5mil          PDF417   0mm—60mm
10mil         PDF417   0mm—170mm
15mil         PDF417   0mm—270mm
20mil         DM       0mm—80mm
(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Decoding ability

1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded.
2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code
Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417

Physical

Weight

Gross:450g

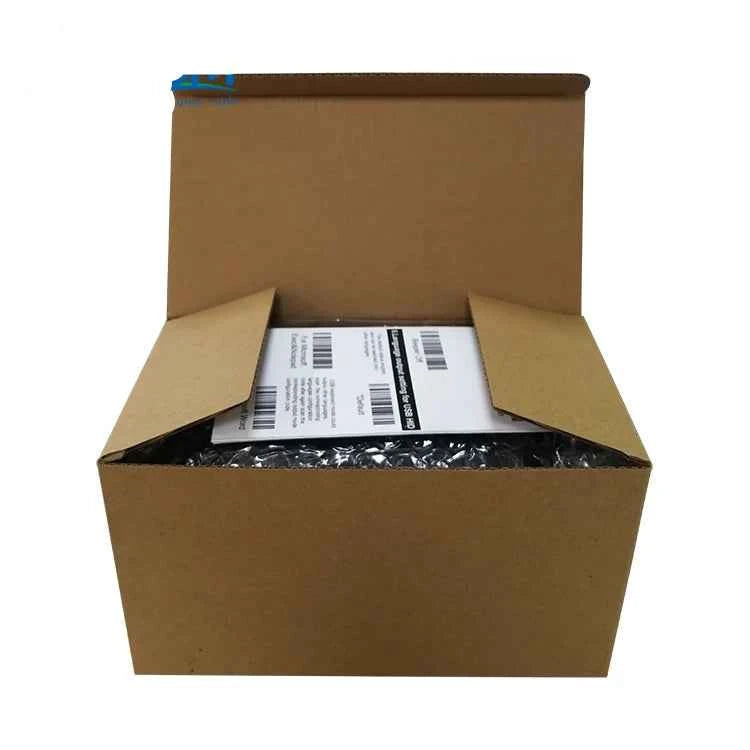

Package

190*105*108mm

20 in 1 carton

560*225*400mm/10.0kg

Environment

Working temperature& humidity

0 to 45 degrees centigrade,  10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade , 10%~90%  No condensation
