General

Model

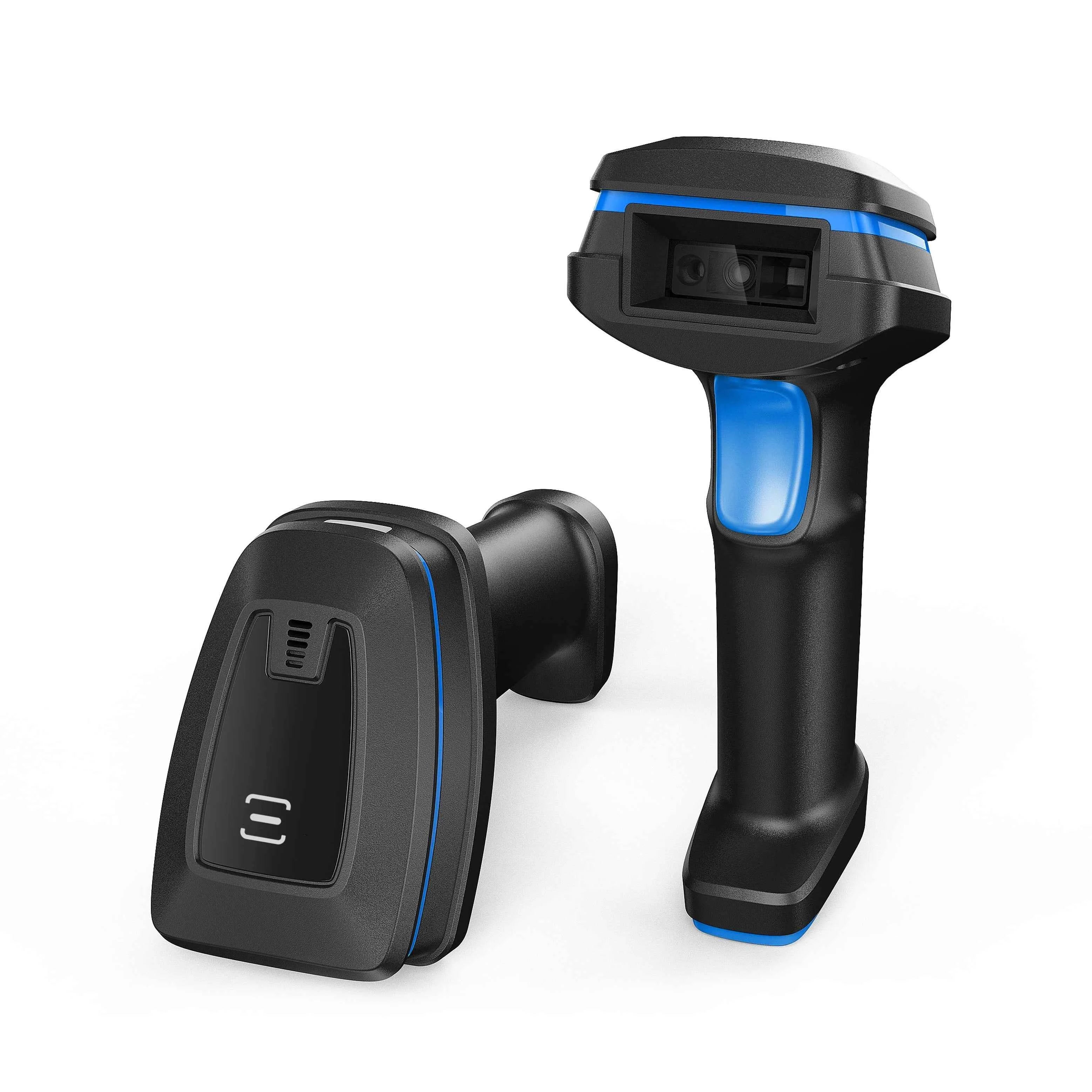

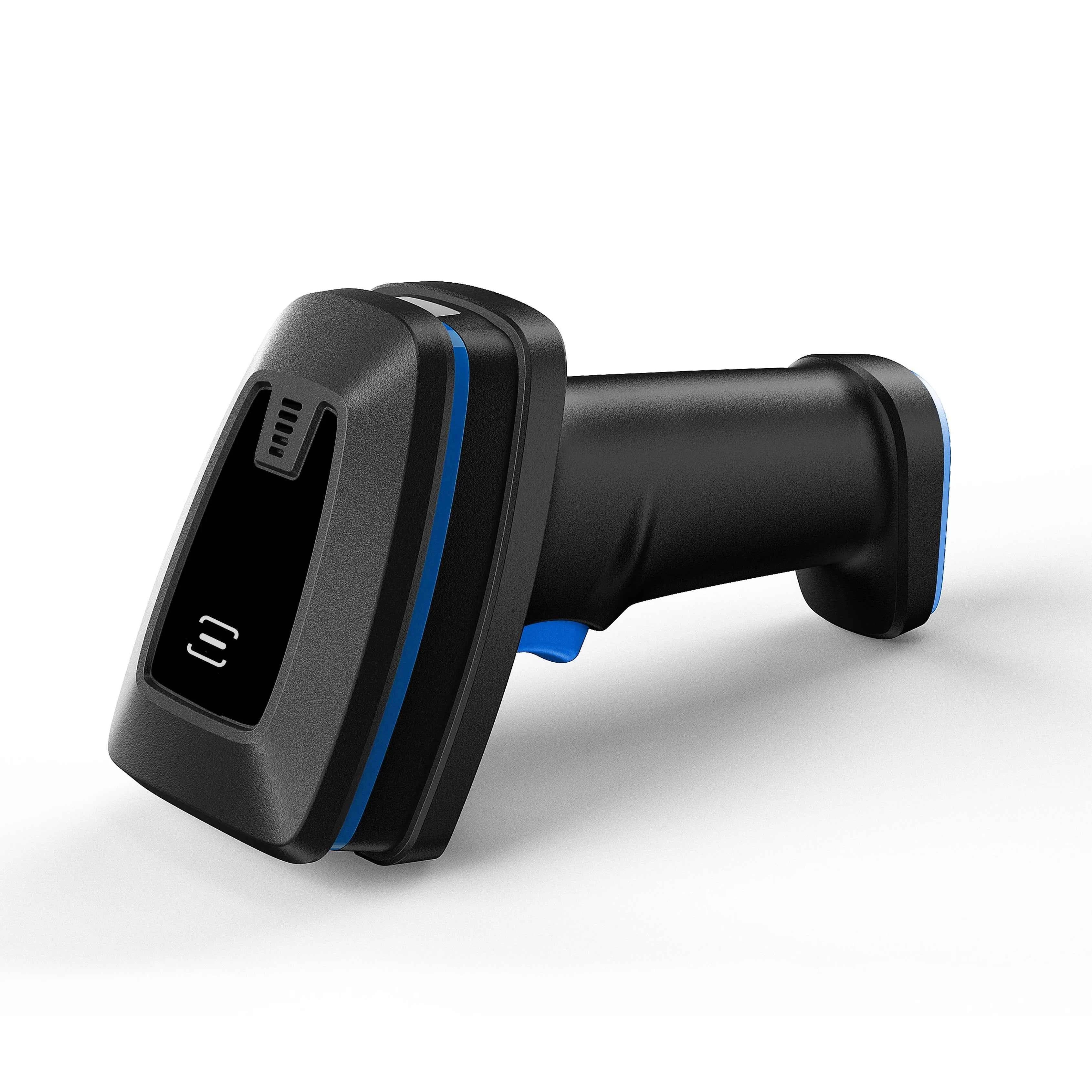

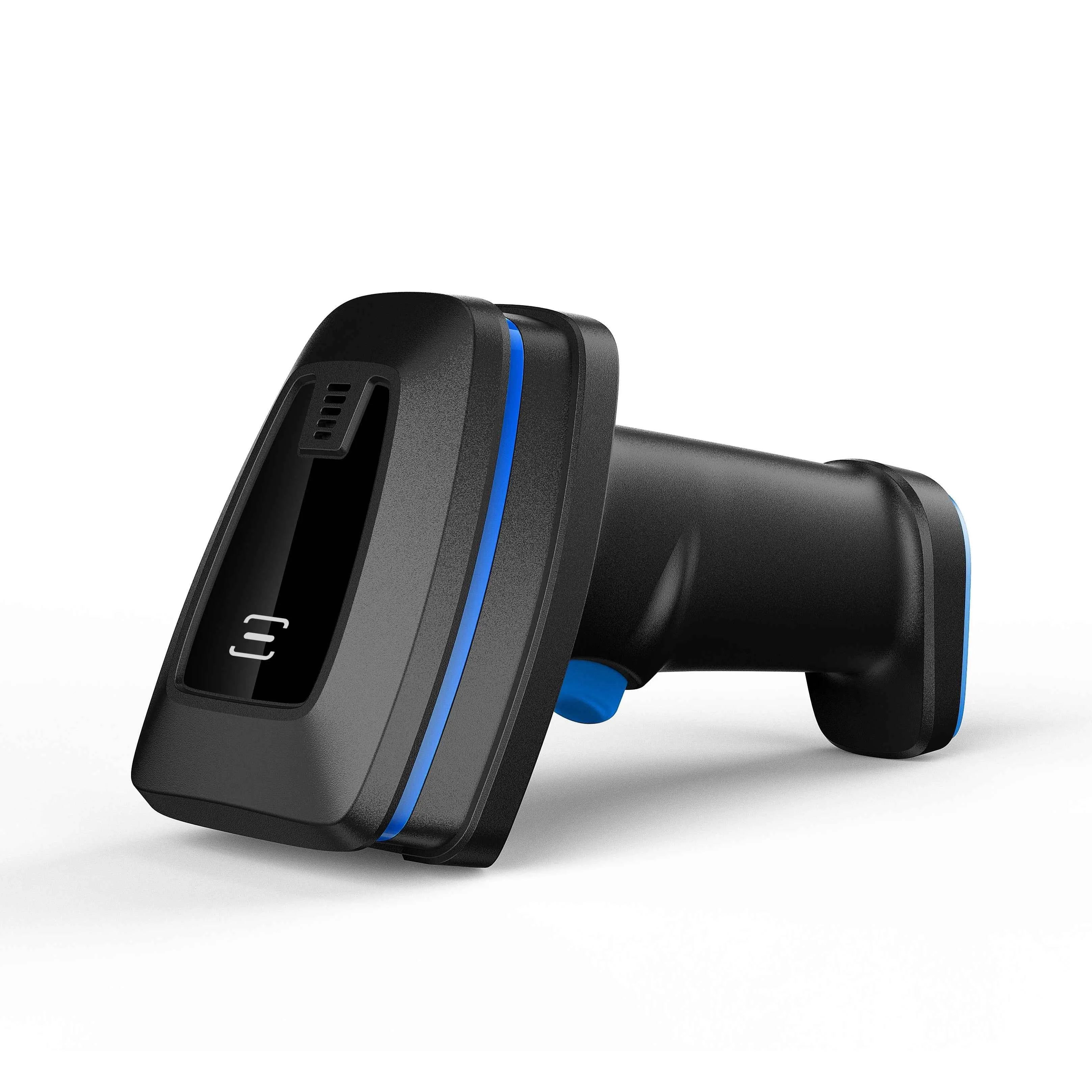

OCBS-W299

Color

Black+Grey

Material

ABS+PC

Current

Working current(Standard):<280mA

Standby current(Standard): < 130 mA

Input Voltage

5 VDC (+/- 10%)/500mA

CPU

1.2G Dual core

Interface

USB+2.4G/USB+2.4G+Bluetooth

Battery

2000mAh

Reading Indicators

LED light&Buzzer

Performance

Image sensor

CMOS sensor ,1280*800 pixels (Rolling Shutter)

Light Source

LED White light

Aiming Light

Green dot

Resolution

4mil

Trigger mode

Manual,Continuous scanning,Auto-sensing

ESD Protection

8KV air discharge

Shock resistance

1.2m free fall on concrete surface

printing contrast

≥15%

Barcodes

1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Typical depth of Field

Precision Barcode Depth of Field

3.34mil CODE 39 60mm—160mm

3.34mil EAN-13 90mm—150mm

5mil CODE39 70mm—240mm

5mil EAN-13 70mm—230mm

13mil  UPC-A 40mm—450mm

5mil PDF417 65mm—210mm

5mil  QR    75mm—140mm

10mil  QR 45mm—290mm

10mil    DM 30mm—260mm

20mil   QR 20mm—480mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Physical

Weight

Gross: 300g

Dimension

172*67*87mm

Package box

175*110*80mm

20 in 1 carton

420*370*237mm/7.0kg

Environment

Working temperature& humidity

0 to 45 degrees centigrade,  10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade , 10%~90%  No condensation
