General

Model

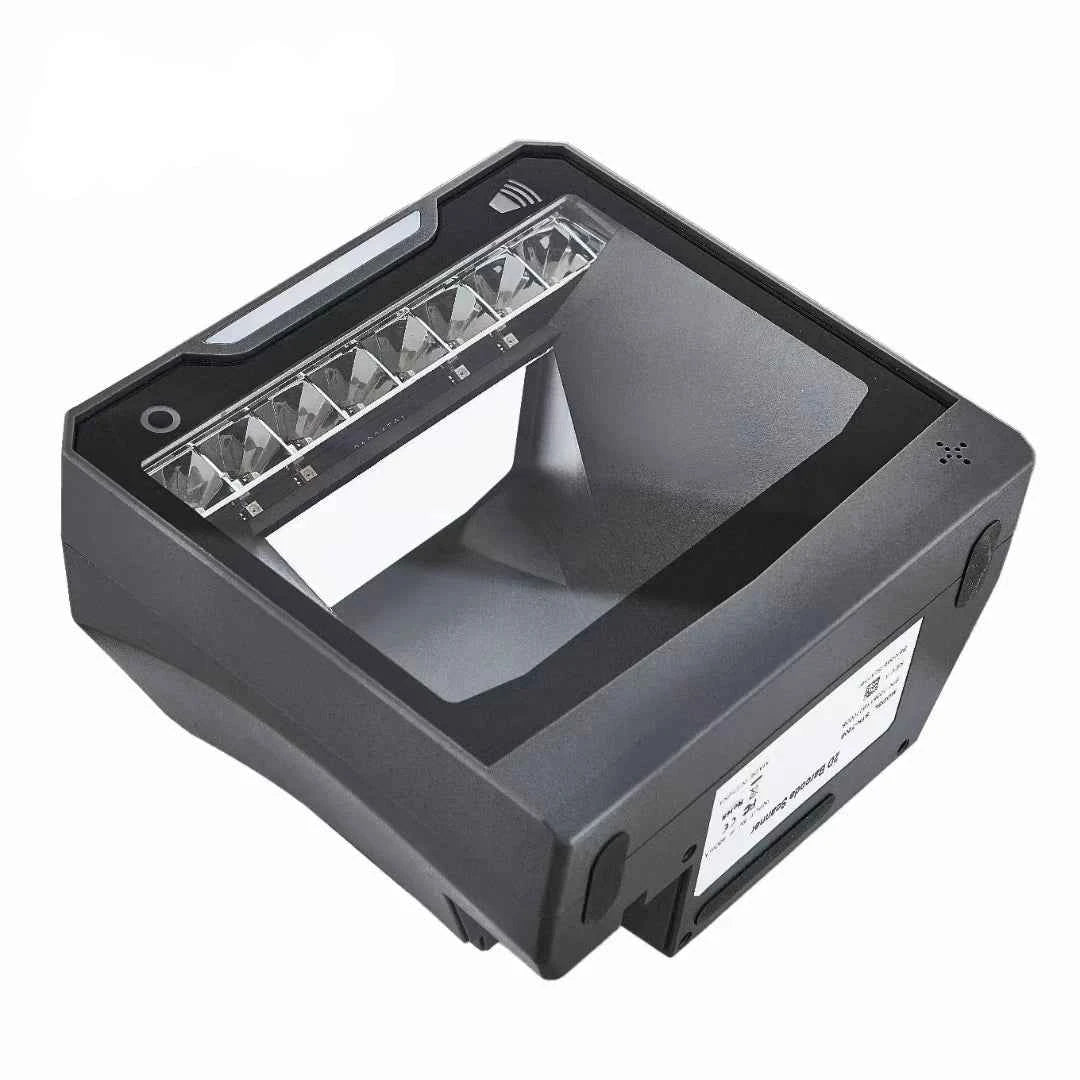

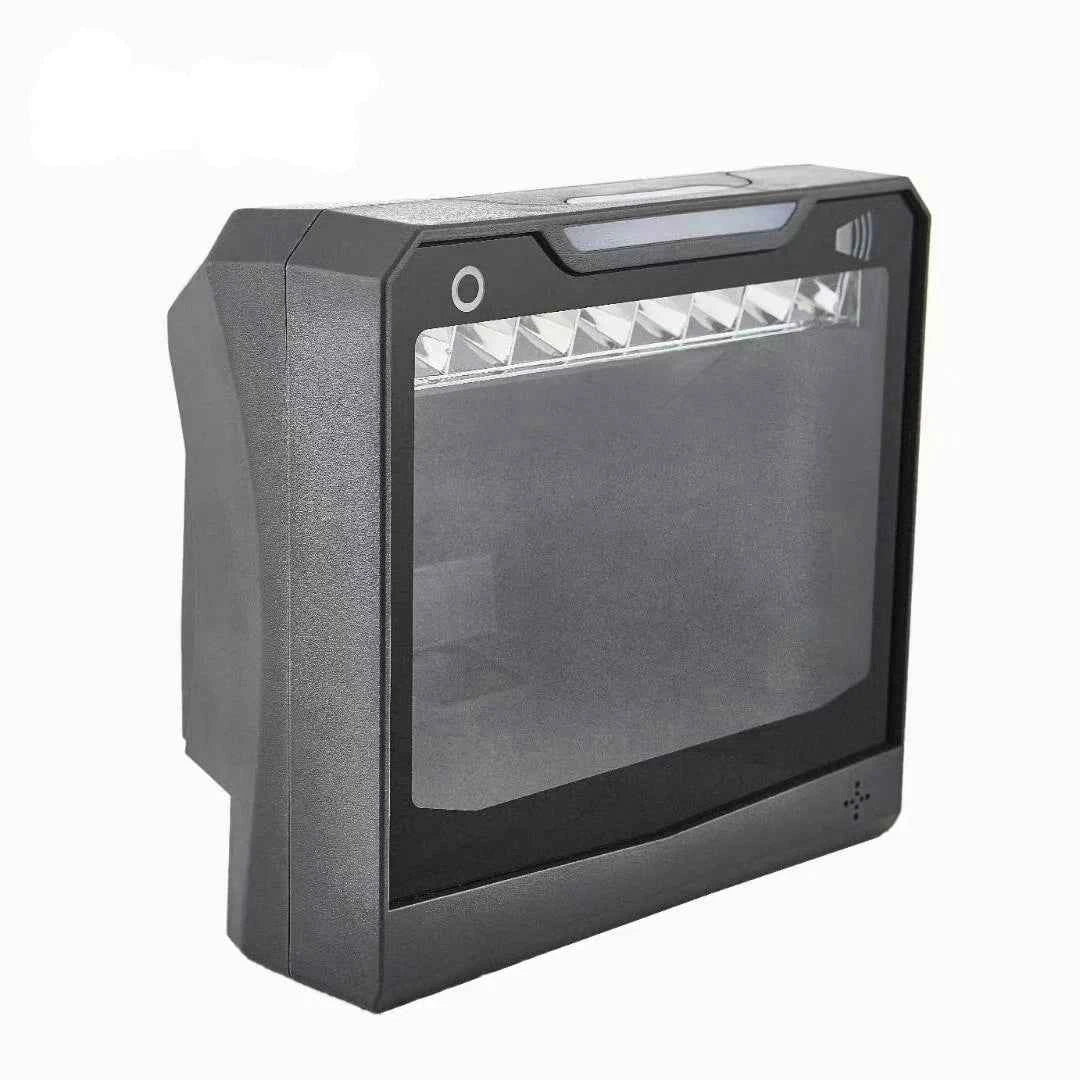

OCBS-T214

Interface

USB

Operating Voltage

5V

Starting Curent

380mA

Work  Current

240mA

Standby Current

190mA

Shock specification

8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes

Performance

Sensor

Overall exposure CMOS sensor

Light source

Warm yellow LED

Field view

44° (H), 34°(V)

Motion tolerance

> 0.4m/S

Scan Angle

Pitch        ±65°@ 0°Roll and 0° Skew

Roll         360°@ 0°Pitch and 0° Skew

Skew        ±65°@ 0°Roll and 0° Pitch

Symbol Contrast

20% minimum reflective difference

Ambient Light Immunity

0-100,000 Lux

Typical Depth of Field

Code39(5mil):0mm-120mm,Code39(13mil):0mm-240mm

QR(20mil):0mm-210mm

Alipay (QR 3*3CM):40mm-650mm

Wechat pay(QR 2.3*2.3CM):20mm-550mm

Decoding ability

1D:Code128/EAN128,EAN.UCCcomposite,

Interleaved2of 5,RSS,Postnet,Plessey code,Code 39,Codabar,Code 93,

Code 11,Telepen,MSIcode,Standard 2 of 5,UPC/EAN etc

2D:PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post,Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC 39,DataMatrix, etc

Physical

Weight

Gross:437g

Package

151*142*84mm

Environment

Working temperature& humidity

0 to 45 degrees centigrade,  10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade , 10%~90%  No condensation
