About
Learn what makes this product unique and why it’s right for you.
| Model | CS-C60p-R100-8H33WF |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| UP Lens |
2.8mm@F1.6 , view angle: 108° (Horizontal), 103°(Vertical) |
| DN Lens |
2.8mm@F1.6 , view angle: 108° (Horizontal), 103°(Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Video Compression | H.264/H.265 |
| Video Bit Rate | Adaptive bit rate |
| Max. Resolution |
Upper camera: 2K (2048 × 1296) Bottom camera: 2K (2048 × 1296) |
| Frame Rate | Max. 15fps; Self-adaptive during network transmission |
| Smart Alarm | Motion detection, AI-powered human shape detection, patrol mode detection |
| Pairing | Bluetooth pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Storage | Supports microSD card (max. 512 GB) |
| Power | Type-C |
| Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Frequency Range |
2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.150GHz~5.250GHz |
| Channel Bandwidth |
2.4GHz Supports 20MHz 5GHz Supports 80MHz |
| Security | WPA-PSK, WPA2-PSK,WPA3-Personal |
| Transmission Rate |
2.4GHz Max. Rate Support: 11b_11M, 11g_54M, 11n_MCS7_20M, 11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M, 11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M |
| Output Power(EIRP) | 20 dBm |
| Antenna Gain | 2.56dBi@2.48GHz, 3.18dBi@5.22GHz |
| Operating Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A |
| Power Consumption | 8W max |
| IR Range | MAX. 10 meters (33ft) |

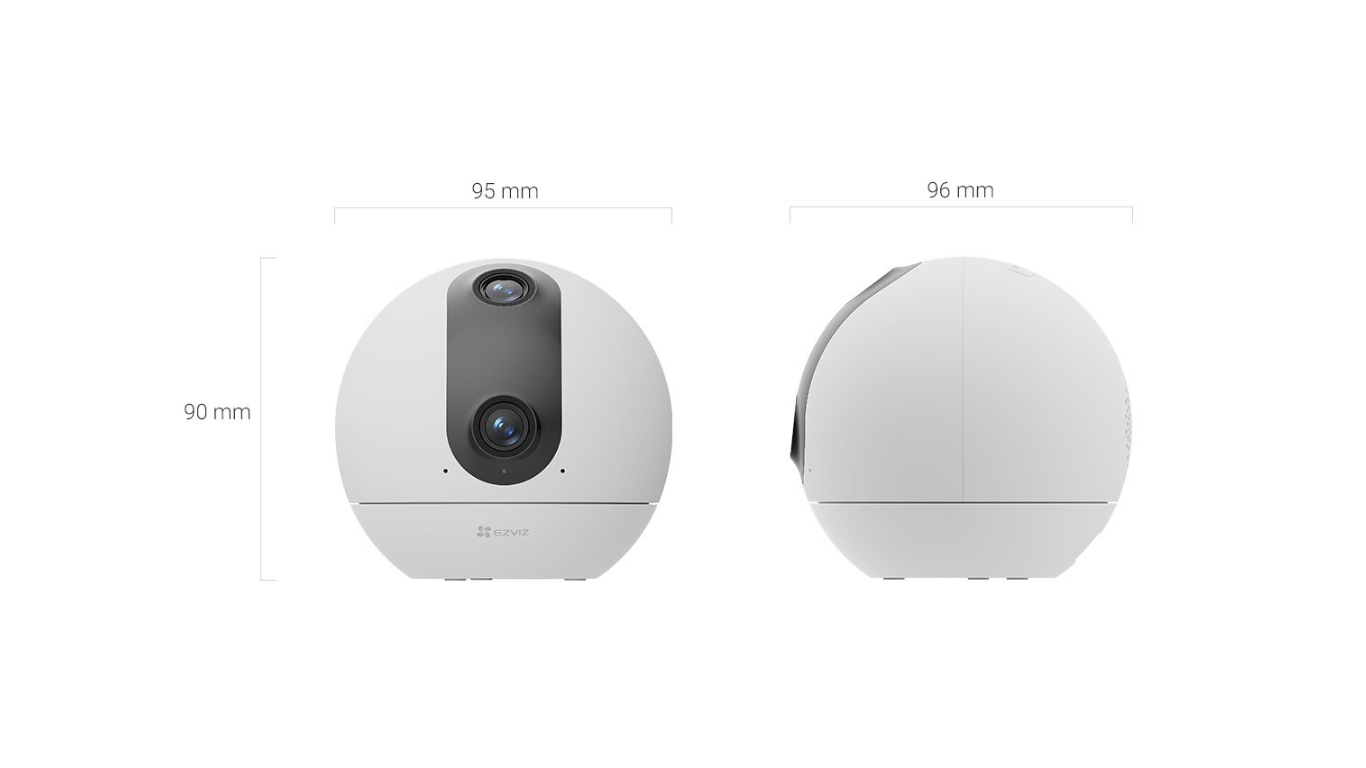

| Dimensions | 95 × 96 × 90 mm (3.74 × 3.78 × 3.54 inch) |
| Packaging Dimensions | 116 × 116 × 165 mm (4.61× 4.61× 6.5 inch) |
| Net Weight | 222 g |
| Bare Weight | 500 g |
| In the box | - C60p Dual Mix 2K Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Inclined Mounting Plate | |
| - Mounting Plate | |
| - Screw Kit | |
| - Regulatory Information × 2 | |
| - Quick Start Guide | |
| Certifications | CE / RoHS / REACH / WEEE / UL |
Learn what makes this product unique and why it’s right for you.
| Model | CS-C60p-R100-8H33WF |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| UP Lens |
2.8mm@F1.6 , view angle: 108° (Horizontal), 103°(Vertical) |
| DN Lens |
2.8mm@F1.6 , view angle: 108° (Horizontal), 103°(Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Video Compression | H.264/H.265 |
| Video Bit Rate | Adaptive bit rate |
| Max. Resolution |
Upper camera: 2K (2048 × 1296) Bottom camera: 2K (2048 × 1296) |
| Frame Rate | Max. 15fps; Self-adaptive during network transmission |
| Smart Alarm | Motion detection, AI-powered human shape detection, patrol mode detection |
| Pairing | Bluetooth pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Storage | Supports microSD card (max. 512 GB) |
| Power | Type-C |
| Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Frequency Range |
2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.150GHz~5.250GHz |
| Channel Bandwidth |
2.4GHz Supports 20MHz 5GHz Supports 80MHz |
| Security | WPA-PSK, WPA2-PSK,WPA3-Personal |
| Transmission Rate |
2.4GHz Max. Rate Support: 11b_11M, 11g_54M, 11n_MCS7_20M, 11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M, 11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M |
| Output Power(EIRP) | 20 dBm |
| Antenna Gain | 2.56dBi@2.48GHz, 3.18dBi@5.22GHz |
| Operating Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A |
| Power Consumption | 8W max |
| IR Range | MAX. 10 meters (33ft) |
| Dimensions | 95 × 96 × 90 mm (3.74 × 3.78 × 3.54 inch) |
| Packaging Dimensions | 116 × 116 × 165 mm (4.61× 4.61× 6.5 inch) |
| Net Weight | 222 g |
| Bare Weight | 500 g |
| In the box | - C60p Dual Mix 2K Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Inclined Mounting Plate | |
| - Mounting Plate | |
| - Screw Kit | |
| - Regulatory Information × 2 | |
| - Quick Start Guide | |
| Certifications | CE / RoHS / REACH / WEEE / UL |
EZVIZ
by
EZVIZ

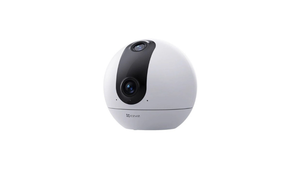

C60p Dual Mix 2K
- Regular price
- $55.00
- Sale price
- $55.00
- Regular price
-
Shipping calculated at checkout.
2 in Stock Now
Essential details about the product's features and use.
Essential details about the product's features and use.
Couldn't load pickup availability
Product Note
Please check product specifications (size, compatibility, and model) carefully before purchasing.
