| Cable Types | |
|---|---|
| Shielded and unshielded pair LAN cabling |
TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA, F, and FA: 100 Ω and 120 Ω |
| Standard Link Interface Adapters | |
|---|---|
| Permanent link adapters | Plug type: shielded RJ45 |
| Optional Plug type: Tera | |
| Channel Adapters | Jack type: shielded RJ45 |
| Optional Jack type: Tera | |
| Test Standards | |
|---|---|
| TIA | Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2 |
| ISO/IEC | Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments |
| Maximum frequency | 1200 MHz |
| General Specifications | |
|---|---|
| Speed of Autotest | Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Category 6A/Class EA: 10 seconds |
| Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests) | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F) |
| Input protection | Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage |
| Display | 5.7 in LCD display with a projected capacitance touchscreen |
| Case | High impact plastic with show absorbing overmold |
| Dimensions | Main Versiv unit with DSX-5000 module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) |
| Weight | Main Versiv unit with DSX-5000 module and battery installed: 3 lbs, 5oz (1.28 kg) |
| Main unit and remote | Lithium ion battery pack, 7.2 V |
| Typical battery life | 8 hours |
| Charge time* | Tester off: 4 hours to charge from 10 % capacity to 90 % capacity |
| Languages supported | English, French, German, Spanish, Portuguese, Italian, Japanese and Simplified Chinese |
| Calibration | Service center calibration period is 1 year |
| Environment Specifications | |
|---|---|
| Operating Temperature | 32° F to 113° F (0° C to 45° C) |
| Storage Temperature | -4° F to +122° F (-20° C to +50° C) |
| Operating relative humidity (% RH without condensation) | 0% to 90%, 32° F to 95° F (0° C to 35° C) |
| 0% to 70%, 95° F to 113° F (35° C to 45 °C) | |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test with and without module and adapter |
| Safety | CSA 22.2 No. 61010, IEC 61010-1 2nd Edition + Amendments 1, 2 |
| Operating altitude | 13,123 ft (4,000 m) |
| EMC | EN 61326-1 |
Learn what makes this product unique and why it’s right for you.
| Cable Types | |
|---|---|
| Shielded and unshielded pair LAN cabling |
TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA, F, and FA: 100 Ω and 120 Ω |
| Standard Link Interface Adapters | |
|---|---|
| Permanent link adapters | Plug type: shielded RJ45 |
| Optional Plug type: Tera | |
| Channel Adapters | Jack type: shielded RJ45 |
| Optional Jack type: Tera | |
| Test Standards | |
|---|---|
| TIA | Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2 |
| ISO/IEC | Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments |
| Maximum frequency | 1200 MHz |
| General Specifications | |
|---|---|
| Speed of Autotest | Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Category 6A/Class EA: 10 seconds |
| Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests) | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F) |
| Input protection | Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage |
| Display | 5.7 in LCD display with a projected capacitance touchscreen |
| Case | High impact plastic with show absorbing overmold |
| Dimensions | Main Versiv unit with DSX-5000 module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) |
| Weight | Main Versiv unit with DSX-5000 module and battery installed: 3 lbs, 5oz (1.28 kg) |
| Main unit and remote | Lithium ion battery pack, 7.2 V |
| Typical battery life | 8 hours |
| Charge time* | Tester off: 4 hours to charge from 10 % capacity to 90 % capacity |
| Languages supported | English, French, German, Spanish, Portuguese, Italian, Japanese and Simplified Chinese |
| Calibration | Service center calibration period is 1 year |
| Environment Specifications | |
|---|---|
| Operating Temperature | 32° F to 113° F (0° C to 45° C) |
| Storage Temperature | -4° F to +122° F (-20° C to +50° C) |
| Operating relative humidity (% RH without condensation) | 0% to 90%, 32° F to 95° F (0° C to 35° C) |
| 0% to 70%, 95° F to 113° F (35° C to 45 °C) | |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test with and without module and adapter |
| Safety | CSA 22.2 No. 61010, IEC 61010-1 2nd Edition + Amendments 1, 2 |
| Operating altitude | 13,123 ft (4,000 m) |
| EMC | EN 61326-1 |
Fluke
by
Fluke

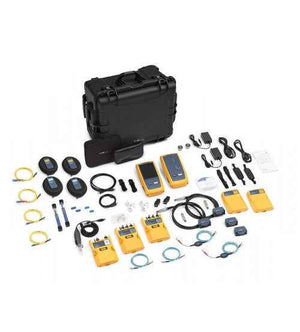

DSX-5000 Cable Analyzer
