About
Learn what makes this product unique and why it’s right for you.
| Model | CS-H1c |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm, view angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical) |
| Minimum Illumination | 0.5 Lux @(F2.2, AGC ON), 0.1 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| IR Night Vision Distance | Up to 32 ft / 10 m |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max: 25 fps; Self-Adaptive during network transmission |
| Video Compression | H.264 |
| H.264 Type | Main Profile |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1 Mbps |
| Smart Alert | Motion detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Operating Conditions | -10 ºC ~ 45 ºC (14 °F ~ 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V / 1A |
| Power Consumption | MAX. 3.0 W |

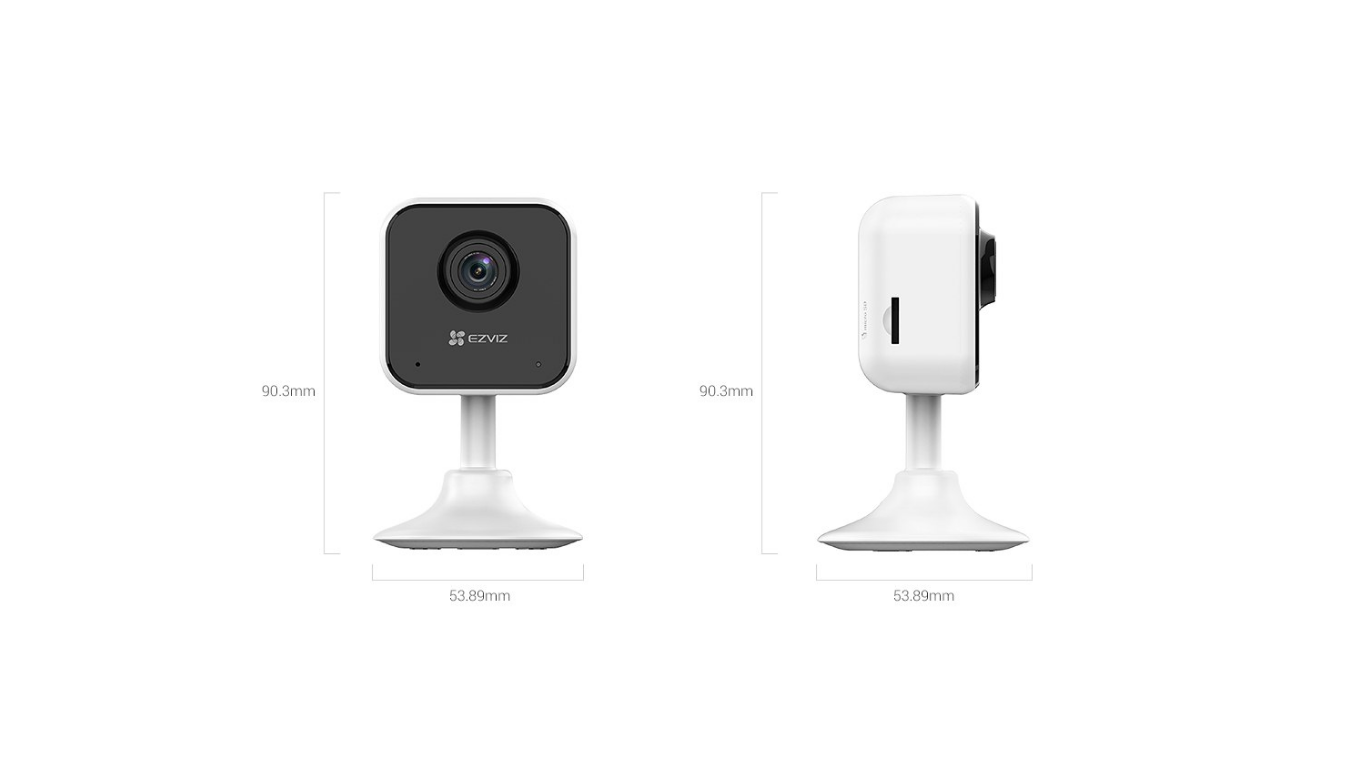

| Dimensions | 53.89 × 53.89 × 90.3 mm (2.12 × 2.12 × 3.56 inch) |
| Packaging Dimensions | 91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch) |
| Net Weight | 87 g (3.07 oz) |
| Weight (With Package) | 305 g (10.76 oz) |
| In the box | H1c Camera ×1 |
| Power Adapter x1 | |
| 2-Meter Power Cable x1 | |
| Foam Sticker x2 | |
| Metal Plate x1 | |
| Regulatory Information x2 | |
| Quick Start Guide x1 | |
| Certifications | CE/RoHS/WEEE/REACH |
Learn what makes this product unique and why it’s right for you.
| Model | CS-H1c |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm, view angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical) |
| Minimum Illumination | 0.5 Lux @(F2.2, AGC ON), 0.1 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| IR Night Vision Distance | Up to 32 ft / 10 m |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max: 25 fps; Self-Adaptive during network transmission |
| Video Compression | H.264 |
| H.264 Type | Main Profile |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1 Mbps |
| Smart Alert | Motion detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Operating Conditions | -10 ºC ~ 45 ºC (14 °F ~ 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V / 1A |
| Power Consumption | MAX. 3.0 W |
| Dimensions | 53.89 × 53.89 × 90.3 mm (2.12 × 2.12 × 3.56 inch) |
| Packaging Dimensions | 91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch) |
| Net Weight | 87 g (3.07 oz) |
| Weight (With Package) | 305 g (10.76 oz) |
| In the box | H1c Camera ×1 |
| Power Adapter x1 | |
| 2-Meter Power Cable x1 | |
| Foam Sticker x2 | |
| Metal Plate x1 | |
| Regulatory Information x2 | |
| Quick Start Guide x1 | |
| Certifications | CE/RoHS/WEEE/REACH |
EZVIZ
by
EZVIZ
EZVIZ H1C
- Regular price
- $27.50
- Sale price
- $27.50
- Regular price
-
Shipping calculated at checkout.
1 in Stock Now
Essential details about the product's features and use.
Essential details about the product's features and use.
Couldn't load pickup availability
Product Note
Please check product specifications (size, compatibility, and model) carefully before purchasing.
