About
Learn what makes this product unique and why it’s right for you.
| Model | CS-HB8 (4MP) |
|---|---|
| Image Sensor | 1/3” 4-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6 Viewing angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical) |
| PT Angle | Pan: 340°, Tilt: 65° |
| Day & Night | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| Night Vision | Up to 49 ft / 15 m |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | 15fps. Self-Adaptive during Network Transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; HD; Standard. Adaptive Bit Rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Minimum Network Requirement | 4Mbps |
| Detection | Smart Human Motion Detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Local Storage | Build-In 32GB eMMC Storage |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| IP Grade | Weatherproof Design |
| Power Consumption | Max. 10W |

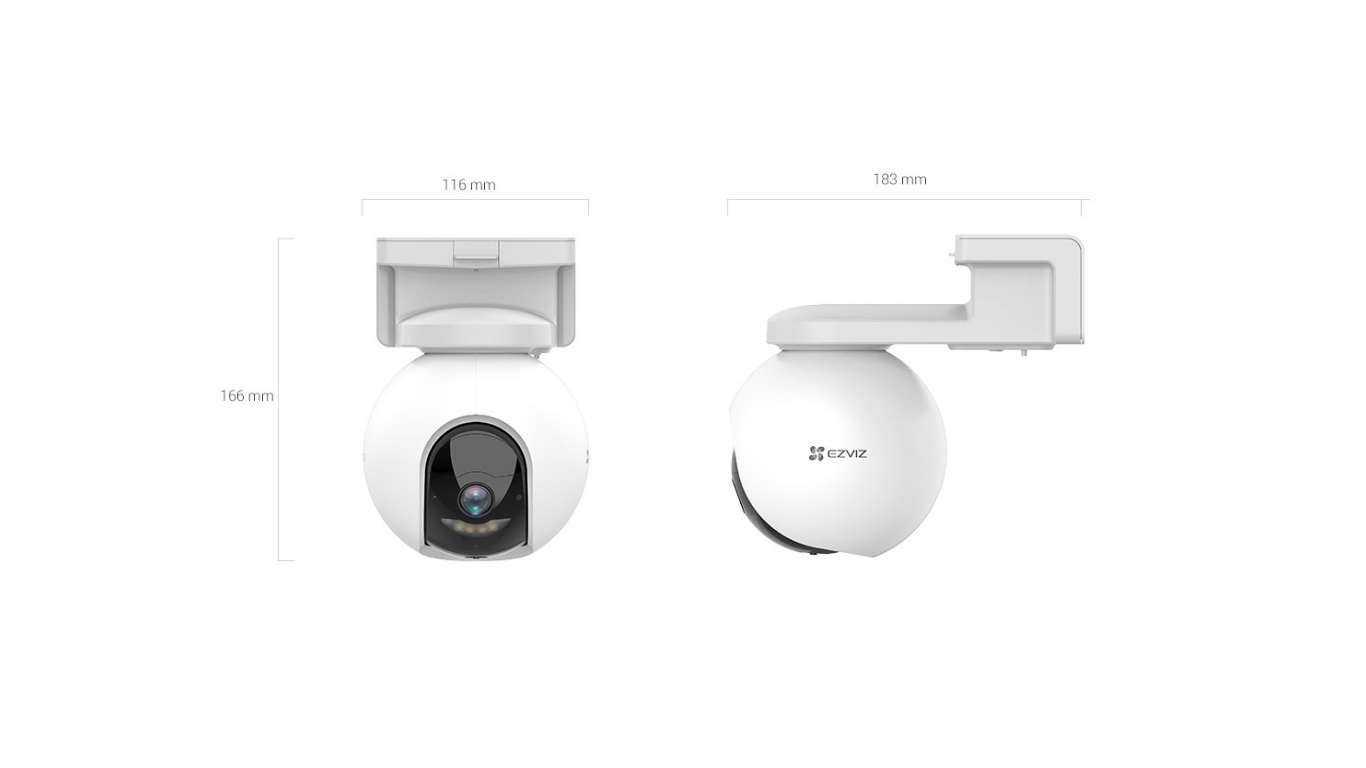

| Product Dimensions | 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch) |
| Packaging Dimensions | 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch) |
| Weight | Net: 803 g (28.32 oz) With package: 1060 g (37.39 oz) |
| Battery Capacity | 10400 mAh |
| Power Supply | DC 5V / 2A |
| In the box | - HB8 2K⁺ Camera |
| - Drilling Template | |
| - USB Cable | |
| - Screw Kit | |
| - Quick Installation Guide | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | CE / FCC / WEEE / RoHS / REACH / UL |
