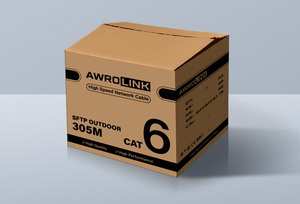

AWRO LINK Network Cable SF/UTP 305M

PROD ID 902.3.01.560042
SF/UTP 23AWG 4P BARE
COPPER PE BLACK
Outdoor CAT6 SF/UTP 0.56mm Bare Copper PE Single Jacket
Pass Fluke Chanel Test
305M/Roll/BOX (with Plastic Reel )

Item Description
Conductor
Num of pair 4
Material Bare copper
Construction 1/0.56±0.008 mm
Insulation
Material HDPE
Nom.Thickness 0.25mm
Nom.OD 1.15±0.08 mm
Color Per cross-section
Twisted - Yes
Filler Material PE
Size Cross
Binder Material Mylar
Coverage ≥20%
Drain Material CCA
Construction 1/0.40±0.008 mm
Shielding Material Al-Mylar
Coverage ≥20%
Braid Material Aluminum magnesium wire
Construction 128/0.16±0.008
Rip-cord - YES
Jacket
Material PE
Nom.Thickness 0.75 mm
Nom.OD 7.90±0.30mm
Color Optional

Temperature Rating 60℃
Dielectric 1.0kV DC 1Min,without breakdown
Voltage Rating(V) 60V
DC conductor resistance 9.38Ω/100m
Ref.Standard ANSI/TIA 568.2-D
