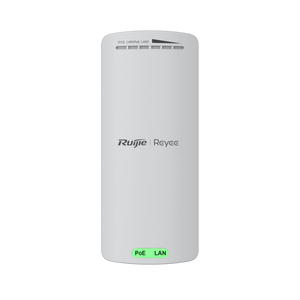

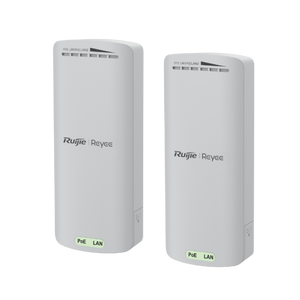

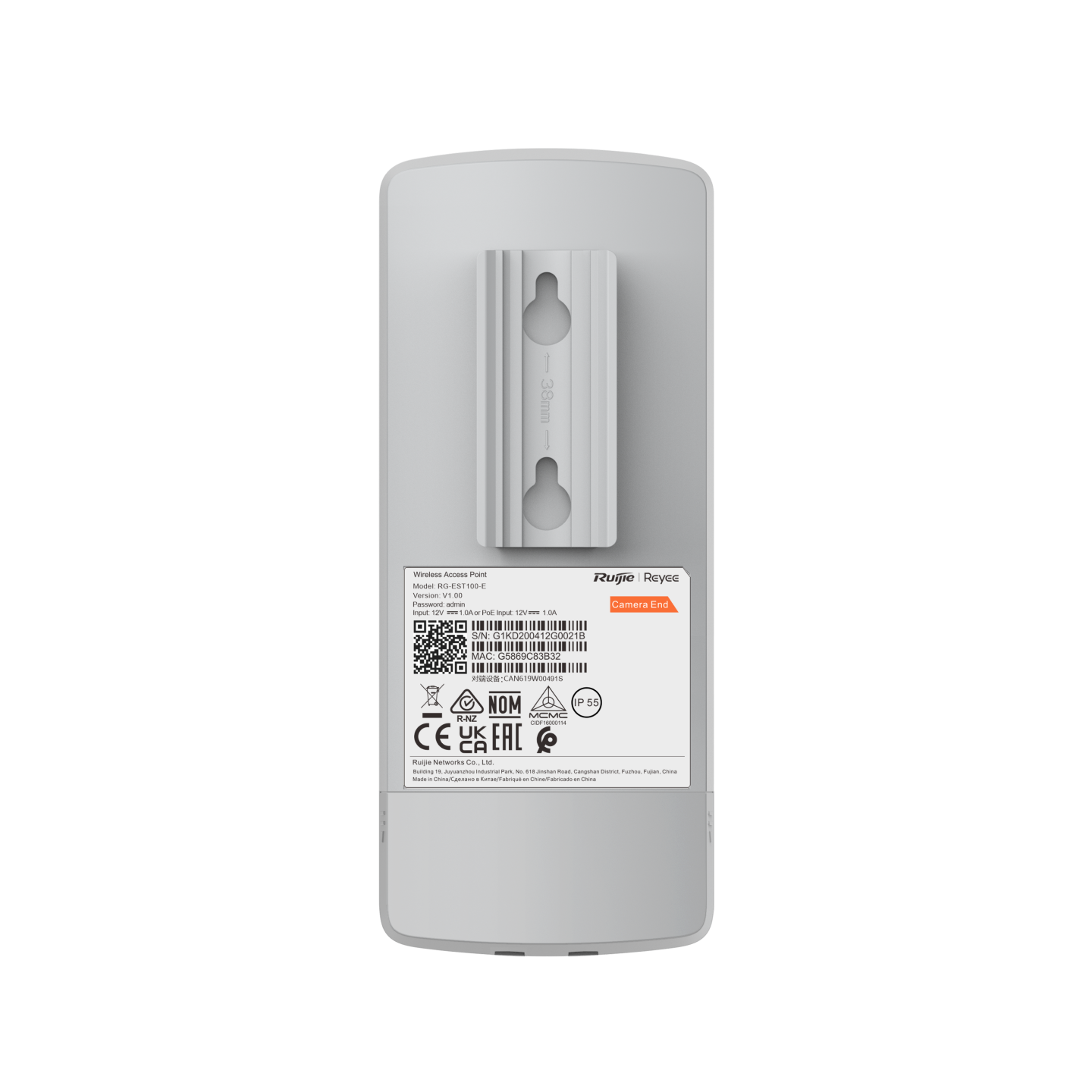

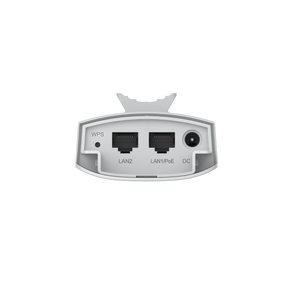

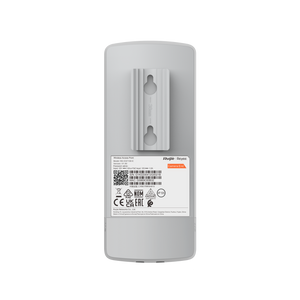

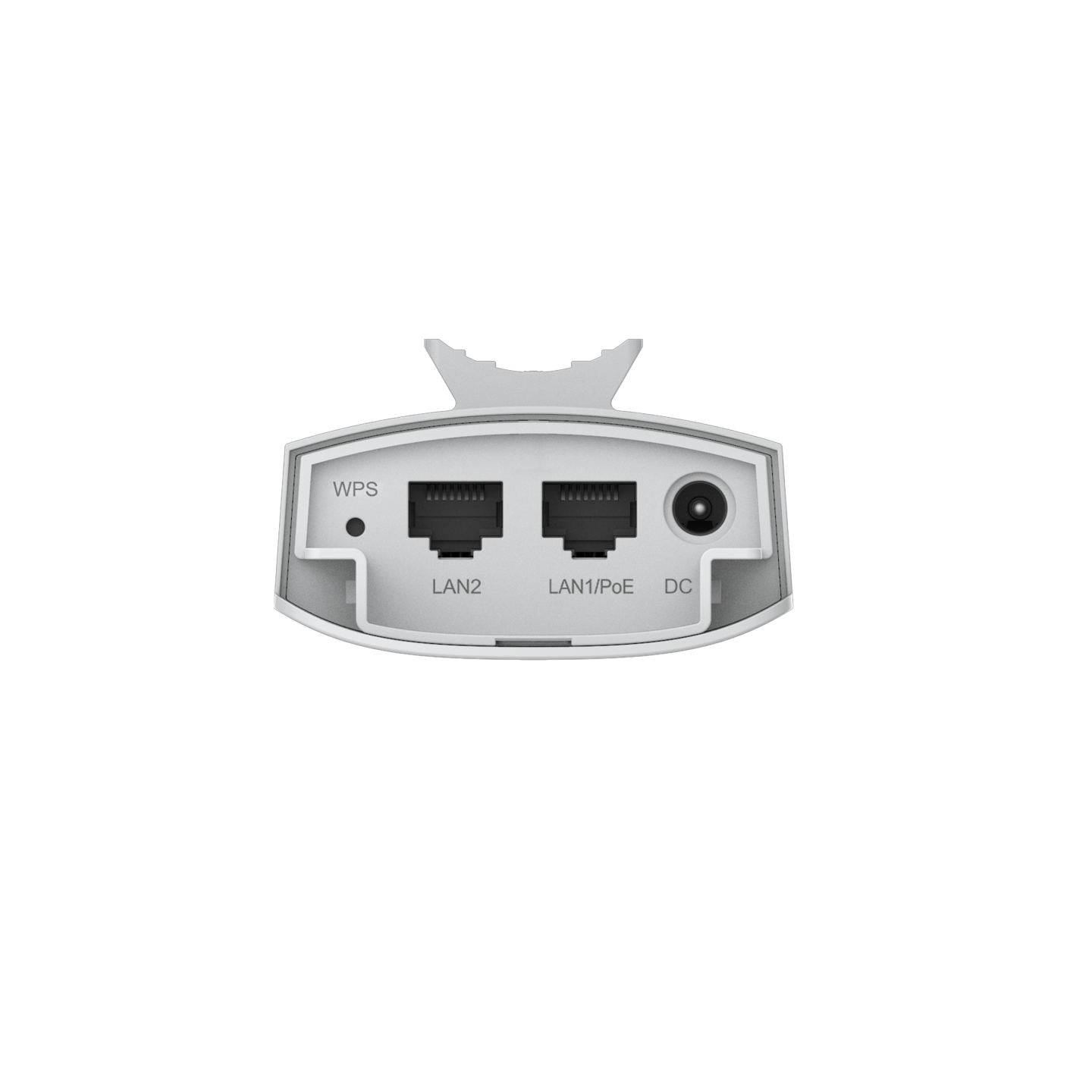

RG-EST100-E, 2.4GHz Dual-stream 500m Wireless Bridge
Highlight Features
- RG-EST100-E can easily transmit data from 500m away in real time
- Factory-free configuration, without complex alignment
- IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
- Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
- Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Radio Design
2.4 GHz Single-Band Dual-Stream
Transmission Protocol
IEEE 802.11b/g/n
Operating Band
802.11b/g/n: 2.400～2.483GHz
Antenna
Directional antennas, 8 dBi
Polarization
Horizontal: 70°, Vertical: 70°
Bridging Distance
500m (recommended)
Spatial Streams
2x2, MU-MIMO
Memory/Flash
64 MB/8 MB
Maximum Throughput
Up to 300 Mbps at 2.4 GHz
Max. Transmit Power
≤100 mW(20 dBm) (adjustable)
IP Rating
IP55
Lightning Protection
±6 KV(Common Mode)
Installation
Wall-mounted/ Pole-mounted
Dimensions （D x W x H）
165.5mm×68.7mm×42mm
Weight
0.3 kg
Certification
CE
Learn what makes this product unique and why it’s right for you.
RG-EST100-E, 2.4GHz Dual-stream 500m Wireless Bridge
Highlight Features
- RG-EST100-E can easily transmit data from 500m away in real time
- Factory-free configuration, without complex alignment
- IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
- Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
- Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Radio Design
2.4 GHz Single-Band Dual-Stream
Transmission Protocol
IEEE 802.11b/g/n
Operating Band
802.11b/g/n: 2.400～2.483GHz
Antenna
Directional antennas, 8 dBi
Polarization
Horizontal: 70°, Vertical: 70°
Bridging Distance
500m (recommended)
Spatial Streams
2x2, MU-MIMO
Memory/Flash
64 MB/8 MB
Maximum Throughput
Up to 300 Mbps at 2.4 GHz
Max. Transmit Power
≤100 mW(20 dBm) (adjustable)
IP Rating
IP55
Lightning Protection
±6 KV(Common Mode)
Installation
Wall-mounted/ Pole-mounted
Dimensions （D x W x H）
165.5mm×68.7mm×42mm
Weight
0.3 kg
Certification
CE
Ruijie
by
Ruijie
Ruijie RG- Dual-stream 500m Wireless Bridge EST100-E
- Regular price
- $48.40
- Sale price
- $48.40
- Regular price
-
Shipping calculated at checkout.
1 in Stock Now
