Item Details
Description S210I-8P4SX (8*10/100/1000BASE-T ports, 2*GE SFP ports, 2*10GE SFP+ ports, PoE+, DIN Rail Mounting, Dual redundant 48 to 57V DC supply, Fanless, Without power module)
Part Number 98012933
Model S210I-8P4SX
First supported version V600R024C10SPC600

Components

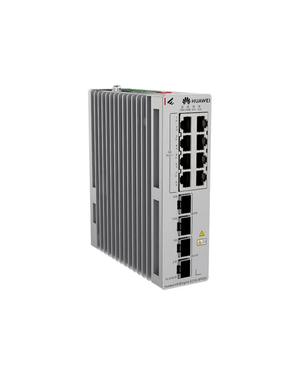

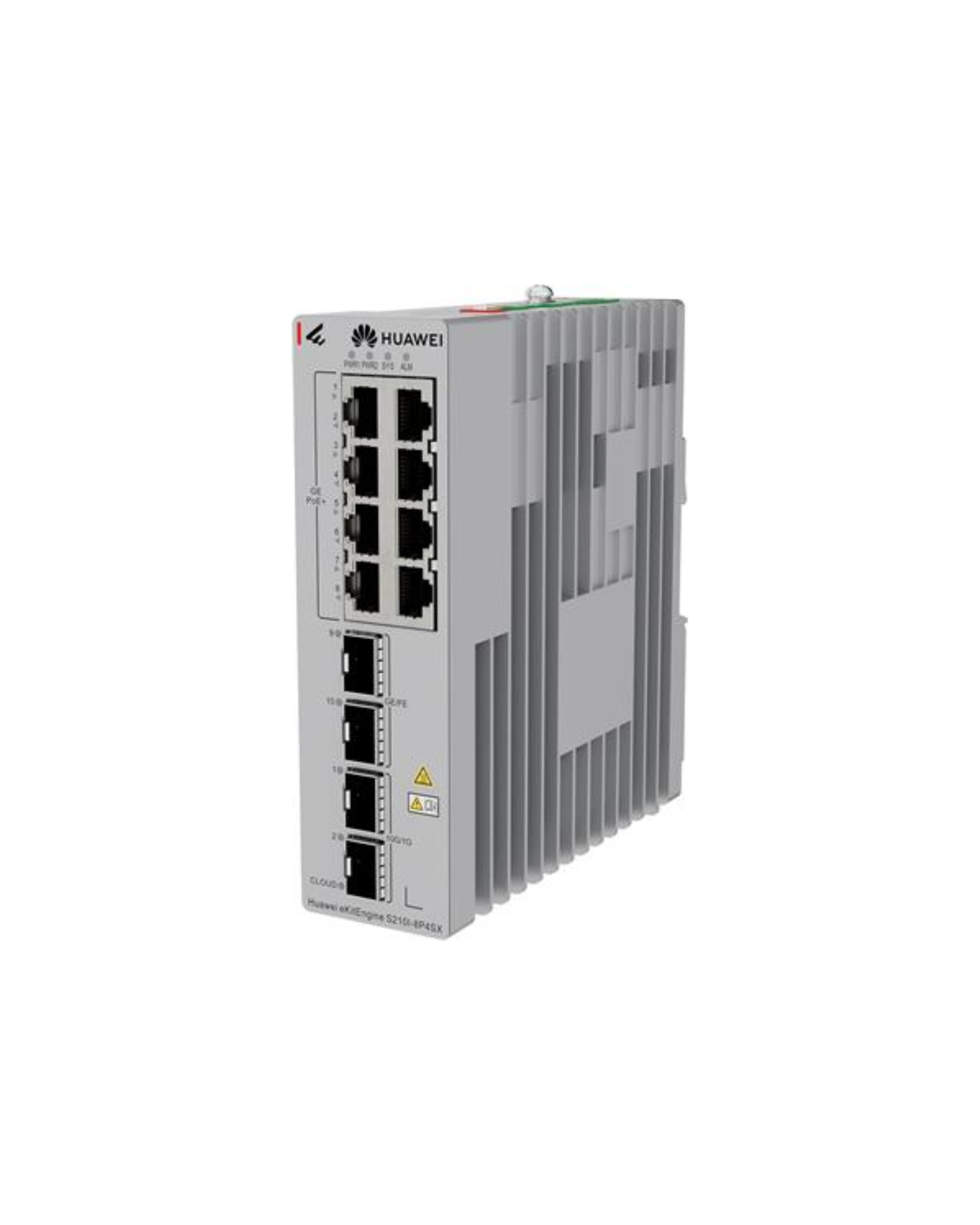

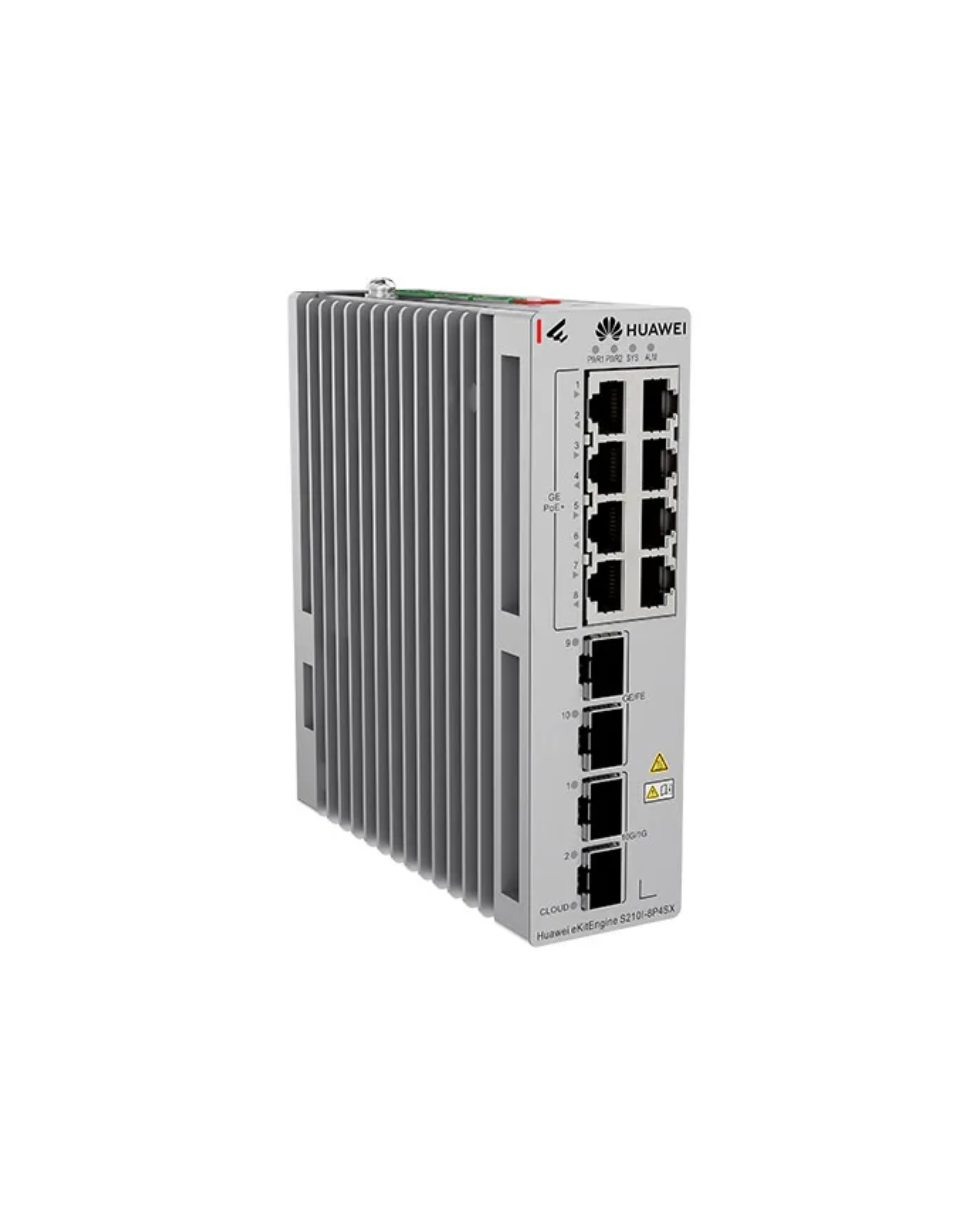

Figure 4-55 S210I-8P4SX appearance

1

One DI port

NOTE:

It must be used with 1x5-Pin Phoenix Connector, which is included in the auxiliary material package delivered with the device.

2

One DO port

NOTE:

It must be used with 1x5-Pin Phoenix Connector, which is included in the auxiliary material package delivered with the device.

3

Two DC power input ports

NOTE:

The following external power module can be configured:

PAC240S56-CN (240 W PoE AC&HVDC Power)

4

PoE DIP switch

NOTICE:
  • DIP switch 1 is reserved and cannot be used.
  • When DIP switch 2 is set to ON, the device works in PoE indicator mode and the service port indicators show the PoE status of each port. When DIP switch 2 is set to OFF (default), the service port indicators show the Link and Active states of each port.

5

Ground screw

NOTE:

It is used with a ground cable.

6

One RST button

NOTICE:
  • To reset the device, press and hold down this button for less than 6 seconds.
  • To restore the device to its factory default settings, press and hold down this button for more than 6 seconds.

7

Eight 10/100/1000BASE-T PoE+ ports

8

Two 100/1000BASE-X ports

9

Two 10GE SFP+ ports

-

-

Ports

Figure 4-56 Typical connections of the DI port
Figure 4-57 Typical connections of the DO port
Table 4-141 Ports on the S210I-8P4SX
Port Connector Type Description Available Components
10/100/1000BASE-T port RJ45 A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s.

Ethernet cable
1000BASE-X port SFP A 1000BASE-X port can send and receive data at 1000 Mbit/s or 100 Mbit/s.

Industrial optical modules
10GE SFP+ optical port SFP+ A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s.

Industrial optical modules (When 10GE optical modules are used, only optical modules with transmission distances less than or equal to 10 km are supported)
DI port 1x5-Pin Phoenix Connector

The DI port is used to check active level signals.

Signal type: 9.6 V to 60 V for state 1; –30 V to +3 V for state 0

1x5-Pin Phoenix Connector
DO port 1x5-Pin Phoenix Connector

The DO port outputs signals so that the connected device can take corresponding actions.

Signal type: Passive DO signals, Boolean value (short circuit and open circuit)

1x5-Pin Phoenix Connector

Indicators and Buttons

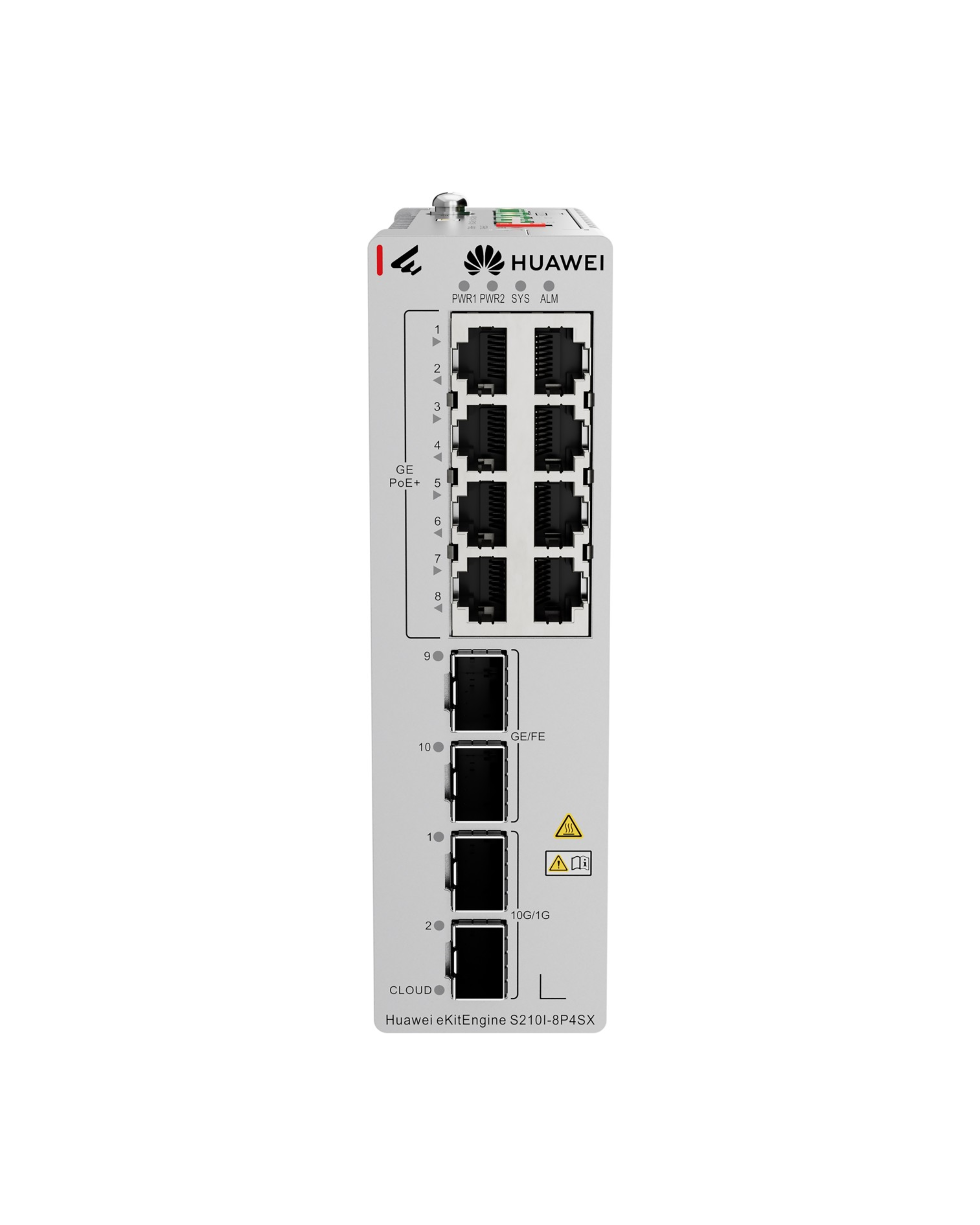

Figure 4-58 Indicators on the device
Table 4-142 Description of indicators on the device

No.

Indicator

Name

Color

Status

Description

1

PWR1

Indicator of power module 1

-

Steady off

Power module 1 is not supplying power or is abnormal.

Green

Steady on

Power module 1 supplies power properly.

2



PWR2



Indicator of power module 2

-

Steady off

Power module 2 is not supplying power or is abnormal.

Green

Steady on

Power module 2 supplies power properly.

3

SYS

System status indicator

-

Off

The system is not running.

Green

Fast blinking

The system is starting.

Green

Steady on

During the system startup preparation phase, the SYS indicator is steady green, which lasts for a maximum of 30 seconds.

Green

Slow blinking

The system is running normally.

4

ALM

Alarm indicator

Red

Steady on

The system is faulty or a temperature alarm has been generated.

-

Steady off

The system is normal.

5

1 to 8

Electrical port indicator (one indicator for each port)

Arrowheads show the positions of ports. A down arrowhead indicates a port at the bottom, and an up arrowhead indicates a port at the top.

Meanings of service port indicators vary in different modes. For details, see Table 4-143.

6

9 and 10

1 and 2

Optical port indicator (one indicator for each port)

-

7

CLOUD

Cloud indicator

-

Off

The device is not connected to the cloud.

Blue

Fast blinking

The device is connecting to the cloud.

Blue

Slow blinking

The device is in the cloud management state.
Table 4-143 Description of service port indicators in different modes (one indicator for each port)

Display Mode

Color

Status

Description

Default mode

-

Steady off

The port is not connected or has been shut down.

Green

Steady on

A link has been established on the port.

Green

Blinking

The port is sending or receiving data.

PoE connection status indicator mode

NOTE:

You need to set DIP switch 2 to ON. In this case, the device works in PoE mode, and the service port indicators show the PoE status of each port.

-

Steady off

The port is not providing power to a powered device (PD).

Green

Steady on

The port is providing power to a PD.

Green

Blinking

The PD connected to the port is not an IEEE-compliant PD or its power exceeds the maximum power or power threshold of the port.

Power Supply System

The device can use a single power module or dual power modules for 1+1 power redundancy. It can be connected to a PAC240S56-CN power module.

Table 4-144 Power supply configurations

Power Module 1

Power Module 2

Available PoE Power

Maximum Number of Ports (Fully Loaded)

PAC240S56-CN

-

210 W
  • 802.3af (15.4 W per port): 8
  • 802.3at (30 W per port): 7

PAC240S56-CN

PAC240S56-CN

240 W
  • 802.3af (15.4 W per port): 8
  • 802.3at (30 W per port): 8
  • The PoE power supply of the device is in direct mode. The input voltage must meet the PoE standard. If the input voltage does not meet the PoE standard, the voltage on the PD side may be too low.
  • If the PAC240S56-CN is used, one PAC240S56-CN can supply power to only one S210I-8P4SX at a time.

Heat Dissipation System

The device has no fans and uses natural heat dissipation.

Technical Specifications

Table 4-145 Technical specifications of the S210I-8P4SX
Item Specification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 44.0 mm x 142.0 mm (6.38 in. x 1.73 in. x 5.59 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.)
Chassis height [U] 3.65 U
Chassis material Metal
Weight without packaging [kg(lb)] 0.986 kg (2.17 lb)
Weight with packaging [kg(lb)] 1.35 kg (2.98 lb)
Typical power consumption [W] 15.56 W
Typical heat dissipation [BTU/hour] 53.09 BTU/hour
Maximum power consumption [W]
  • Without PoE: 16.24 W
  • Full PoE load: 257.6 W (PoE: 240 W)
Maximum heat dissipation [BTU/hour]
  • Without PoE: 55.41
  • Full PoE load: 878.96
Static power consumption [W] 9.52 W
MTBF [years] 133.599 years
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans)
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans)
Number of card slots 0
Number of power slots 0
Number of fans modules 0
Redundant power supply 1+1
Long-term operating temperature [°C(°F)]

0–1800 m (0–5906 ft.) altitude, industrial optical modules:

  • Sealed cabinet: –40°C to +60°C (–40°F to +140°F)
  • Vented cabinet (≥ 80 LFM): –40°C to +70°C (–40°F to +158°F)
  • Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)] -40°C to +85°C (-40°F to +185°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode DC external
Rated input voltage [V] DC input: 56 V DC
Input voltage range [V]

DC input:

54 V DC to 57 V DC (PoE/PoE+)

48 V DC (PoE)
Maximum input current [A] 5.6 A
Flash memory Physical space: 16 MB
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±6 kV
Power supply surge protection [kV] DC power: ±2 kV in common mode and ±1 kV in differential mode
Ingress protection level (dustproof/waterproof) IP40
Types of fans None
Heat dissipation mode Natural heat dissipation
Airflow direction -
PoE Supported
Certification

EMC certification

Safety certification

Manufacturing certification
Learn what makes this product unique and why it’s right for you.
Item Details
Description S210I-8P4SX (8*10/100/1000BASE-T ports, 2*GE SFP ports, 2*10GE SFP+ ports, PoE+, DIN Rail Mounting, Dual redundant 48 to 57V DC supply, Fanless, Without power module)
Part Number 98012933
Model S210I-8P4SX
First supported version V600R024C10SPC600

Components

Figure 4-55 S210I-8P4SX appearance

1

One DI port

NOTE:

It must be used with 1x5-Pin Phoenix Connector, which is included in the auxiliary material package delivered with the device.

2

One DO port

NOTE:

It must be used with 1x5-Pin Phoenix Connector, which is included in the auxiliary material package delivered with the device.

3

Two DC power input ports

NOTE:

The following external power module can be configured:

PAC240S56-CN (240 W PoE AC&HVDC Power)

4

PoE DIP switch

NOTICE:
  • DIP switch 1 is reserved and cannot be used.
  • When DIP switch 2 is set to ON, the device works in PoE indicator mode and the service port indicators show the PoE status of each port. When DIP switch 2 is set to OFF (default), the service port indicators show the Link and Active states of each port.

5

Ground screw

NOTE:

It is used with a ground cable.

6

One RST button

NOTICE:
  • To reset the device, press and hold down this button for less than 6 seconds.
  • To restore the device to its factory default settings, press and hold down this button for more than 6 seconds.

7

Eight 10/100/1000BASE-T PoE+ ports

8

Two 100/1000BASE-X ports

9

Two 10GE SFP+ ports

-

-

Ports

Figure 4-56 Typical connections of the DI port
Figure 4-57 Typical connections of the DO port
Table 4-141 Ports on the S210I-8P4SX
Port Connector Type Description Available Components
10/100/1000BASE-T port RJ45 A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s.

Ethernet cable
1000BASE-X port SFP A 1000BASE-X port can send and receive data at 1000 Mbit/s or 100 Mbit/s.

Industrial optical modules
10GE SFP+ optical port SFP+ A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s.

Industrial optical modules (When 10GE optical modules are used, only optical modules with transmission distances less than or equal to 10 km are supported)
DI port 1x5-Pin Phoenix Connector

The DI port is used to check active level signals.

Signal type: 9.6 V to 60 V for state 1; –30 V to +3 V for state 0

1x5-Pin Phoenix Connector
DO port 1x5-Pin Phoenix Connector

The DO port outputs signals so that the connected device can take corresponding actions.

Signal type: Passive DO signals, Boolean value (short circuit and open circuit)

1x5-Pin Phoenix Connector

Indicators and Buttons

Figure 4-58 Indicators on the device
Table 4-142 Description of indicators on the device

No.

Indicator

Name

Color

Status

Description

1

PWR1

Indicator of power module 1

-

Steady off

Power module 1 is not supplying power or is abnormal.

Green

Steady on

Power module 1 supplies power properly.

2



PWR2



Indicator of power module 2

-

Steady off

Power module 2 is not supplying power or is abnormal.

Green

Steady on

Power module 2 supplies power properly.

3

SYS

System status indicator

-

Off

The system is not running.

Green

Fast blinking

The system is starting.

Green

Steady on

During the system startup preparation phase, the SYS indicator is steady green, which lasts for a maximum of 30 seconds.

Green

Slow blinking

The system is running normally.

4

ALM

Alarm indicator

Red

Steady on

The system is faulty or a temperature alarm has been generated.

-

Steady off

The system is normal.

5

1 to 8

Electrical port indicator (one indicator for each port)

Arrowheads show the positions of ports. A down arrowhead indicates a port at the bottom, and an up arrowhead indicates a port at the top.

Meanings of service port indicators vary in different modes. For details, see Table 4-143.

6

9 and 10

1 and 2

Optical port indicator (one indicator for each port)

-

7

CLOUD

Cloud indicator

-

Off

The device is not connected to the cloud.

Blue

Fast blinking

The device is connecting to the cloud.

Blue

Slow blinking

The device is in the cloud management state.
Table 4-143 Description of service port indicators in different modes (one indicator for each port)

Display Mode

Color

Status

Description

Default mode

-

Steady off

The port is not connected or has been shut down.

Green

Steady on

A link has been established on the port.

Green

Blinking

The port is sending or receiving data.

PoE connection status indicator mode

NOTE:

You need to set DIP switch 2 to ON. In this case, the device works in PoE mode, and the service port indicators show the PoE status of each port.

-

Steady off

The port is not providing power to a powered device (PD).

Green

Steady on

The port is providing power to a PD.

Green

Blinking

The PD connected to the port is not an IEEE-compliant PD or its power exceeds the maximum power or power threshold of the port.

Power Supply System

The device can use a single power module or dual power modules for 1+1 power redundancy. It can be connected to a PAC240S56-CN power module.

Table 4-144 Power supply configurations

Power Module 1

Power Module 2

Available PoE Power

Maximum Number of Ports (Fully Loaded)

PAC240S56-CN

-

210 W
  • 802.3af (15.4 W per port): 8
  • 802.3at (30 W per port): 7

PAC240S56-CN

PAC240S56-CN

240 W
  • 802.3af (15.4 W per port): 8
  • 802.3at (30 W per port): 8
  • The PoE power supply of the device is in direct mode. The input voltage must meet the PoE standard. If the input voltage does not meet the PoE standard, the voltage on the PD side may be too low.
  • If the PAC240S56-CN is used, one PAC240S56-CN can supply power to only one S210I-8P4SX at a time.

Heat Dissipation System

The device has no fans and uses natural heat dissipation.

Technical Specifications

Table 4-145 Technical specifications of the S210I-8P4SX
Item Specification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 44.0 mm x 142.0 mm (6.38 in. x 1.73 in. x 5.59 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.)
Chassis height [U] 3.65 U
Chassis material Metal
Weight without packaging [kg(lb)] 0.986 kg (2.17 lb)
Weight with packaging [kg(lb)] 1.35 kg (2.98 lb)
Typical power consumption [W] 15.56 W
Typical heat dissipation [BTU/hour] 53.09 BTU/hour
Maximum power consumption [W]
  • Without PoE: 16.24 W
  • Full PoE load: 257.6 W (PoE: 240 W)
Maximum heat dissipation [BTU/hour]
  • Without PoE: 55.41
  • Full PoE load: 878.96
Static power consumption [W] 9.52 W
MTBF [years] 133.599 years
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans)
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans)
Number of card slots 0
Number of power slots 0
Number of fans modules 0
Redundant power supply 1+1
Long-term operating temperature [°C(°F)]

0–1800 m (0–5906 ft.) altitude, industrial optical modules:

  • Sealed cabinet: –40°C to +60°C (–40°F to +140°F)
  • Vented cabinet (≥ 80 LFM): –40°C to +70°C (–40°F to +158°F)
  • Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)] -40°C to +85°C (-40°F to +185°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode DC external
Rated input voltage [V] DC input: 56 V DC
Input voltage range [V]

DC input:

54 V DC to 57 V DC (PoE/PoE+)

48 V DC (PoE)
Maximum input current [A] 5.6 A
Flash memory Physical space: 16 MB
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±6 kV
Power supply surge protection [kV] DC power: ±2 kV in common mode and ±1 kV in differential mode
Ingress protection level (dustproof/waterproof) IP40
Types of fans None
Heat dissipation mode Natural heat dissipation
Airflow direction -
PoE Supported
Certification

EMC certification

Safety certification

Manufacturing certification
Smart Shopping Starts Here
Discover quality products at prices that m...  Read more
Huawei by Huawei

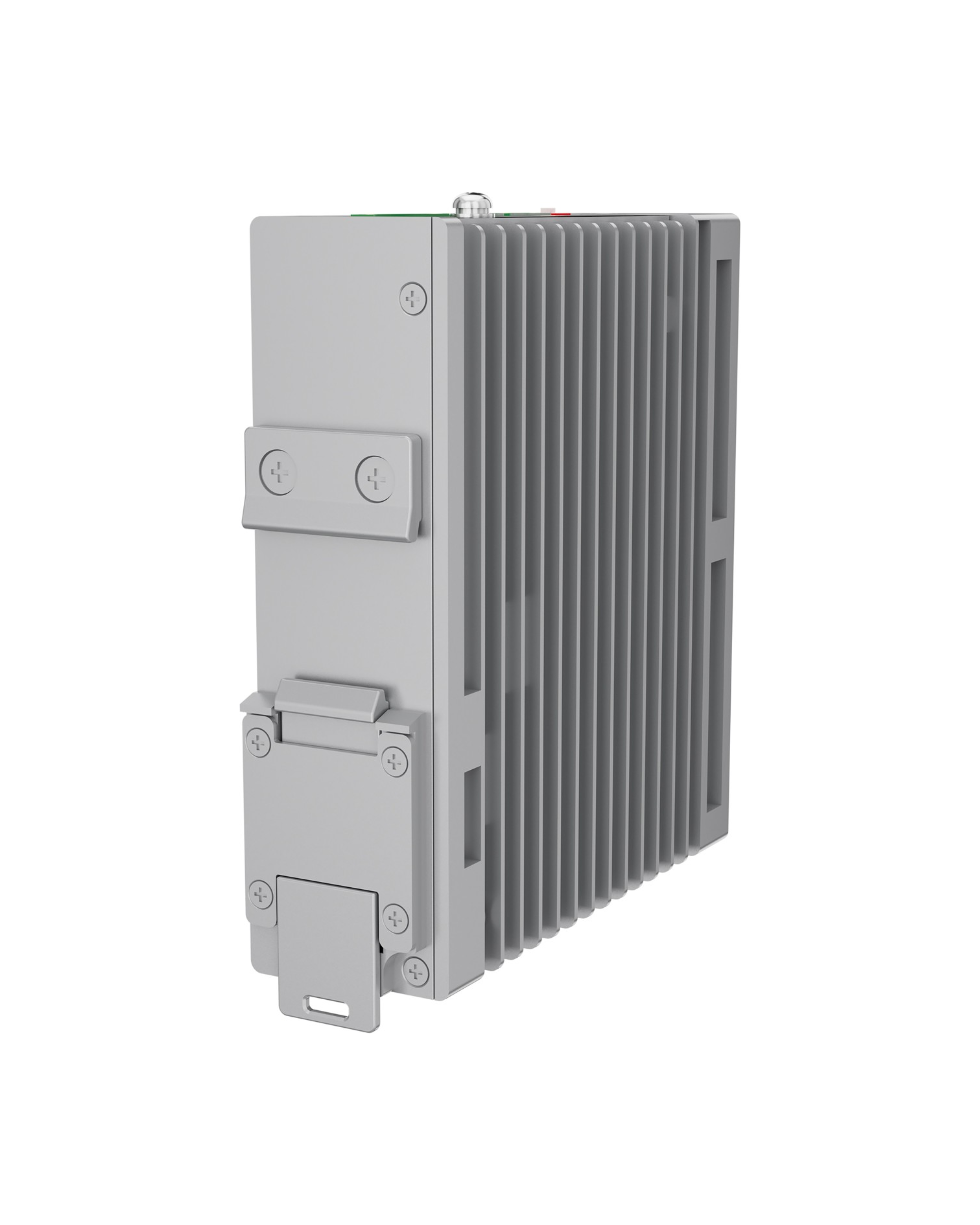

S210I-8P4SX

$180.00
$180.00
Shipping calculated at checkout.
Out of stock
Essential details about the product's features and use.
Essential details about the product's features and use.
Product Note
Please check product specifications (size, compatibility, and model) carefully before purchasing.

Check Out These Related Products

How to

Latest Articles

  • HP: Powering Productivity and Innovation Worldwide

    Read more

  • AWRO STORE: Your Trusted Destination for Technology and Electronics

    Read more
