AR303
Overview
Table 2-3 Basic information about the AR303
| Item | Details |
|---|---|
| Description | AR303, 1*GE COMBO WAN, 4*GE LAN, 1*USB 2.0 |
| Part Number | 50010533 |
| Model | AR303 |
| First supported version | V300R021C00 |
Appearance

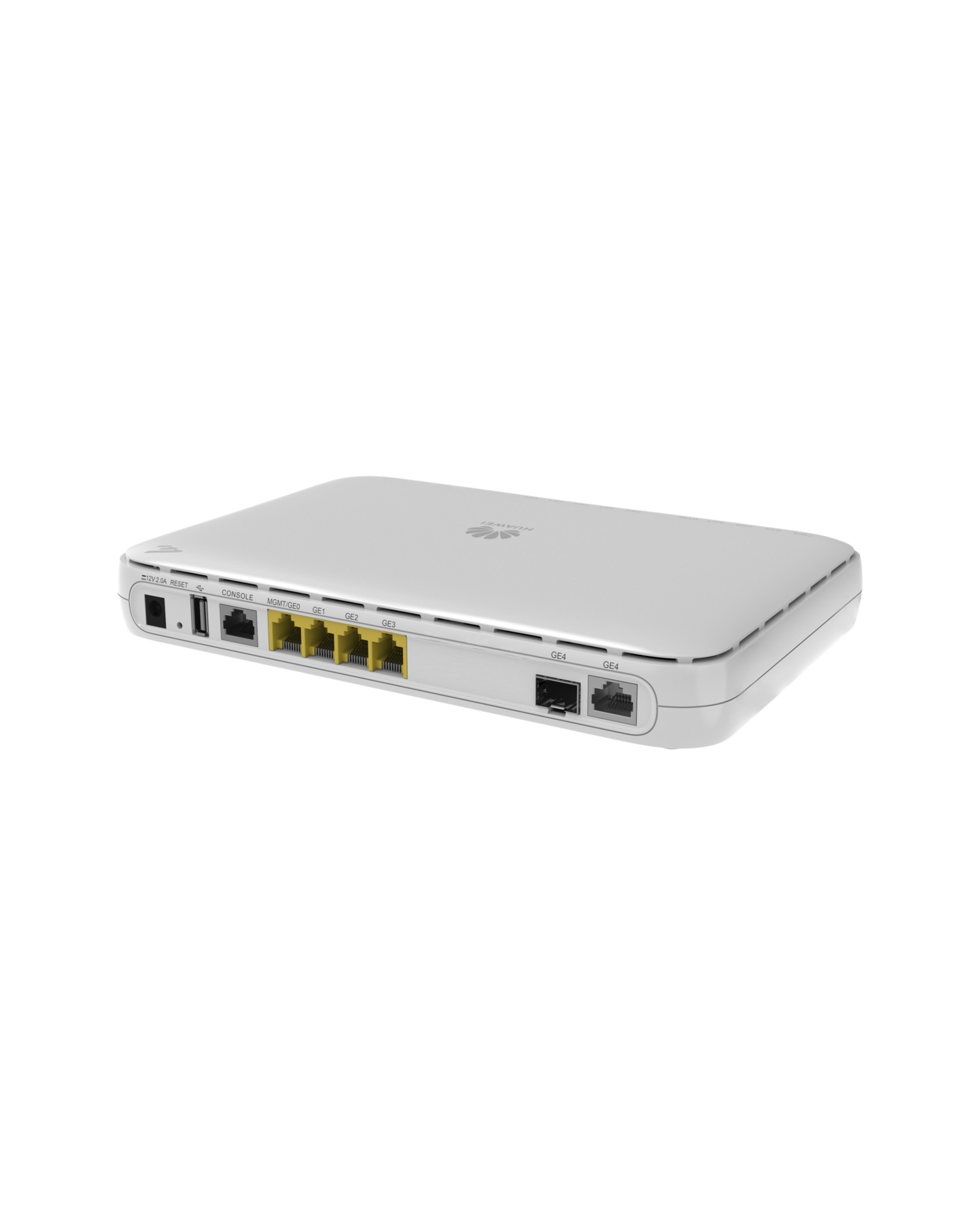

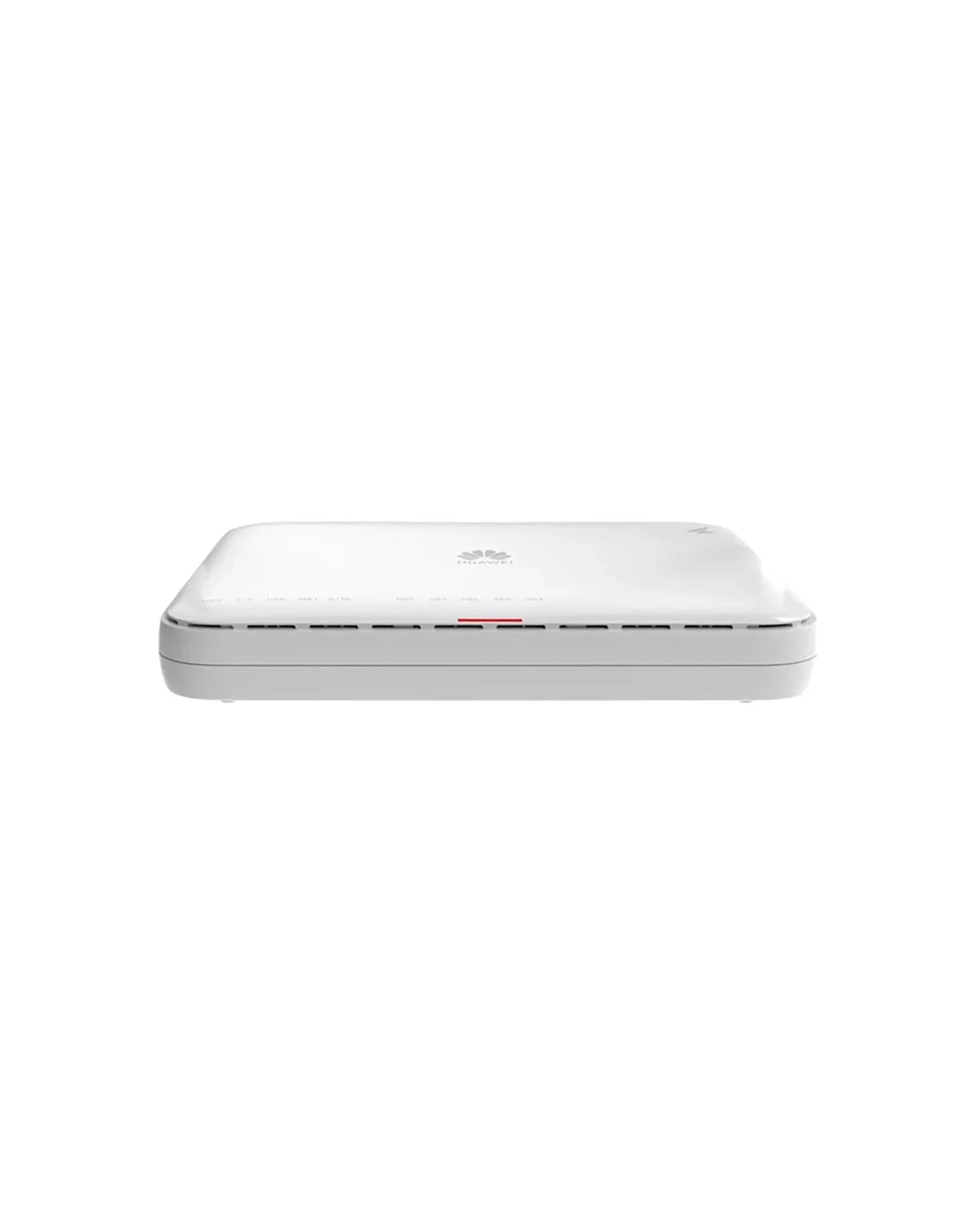

Figure 2-2 Appearance of the AR303
This model has had changes to its appearance and branding, and devices delivered over different periods may have different appearances but have no differences in functions.
Components

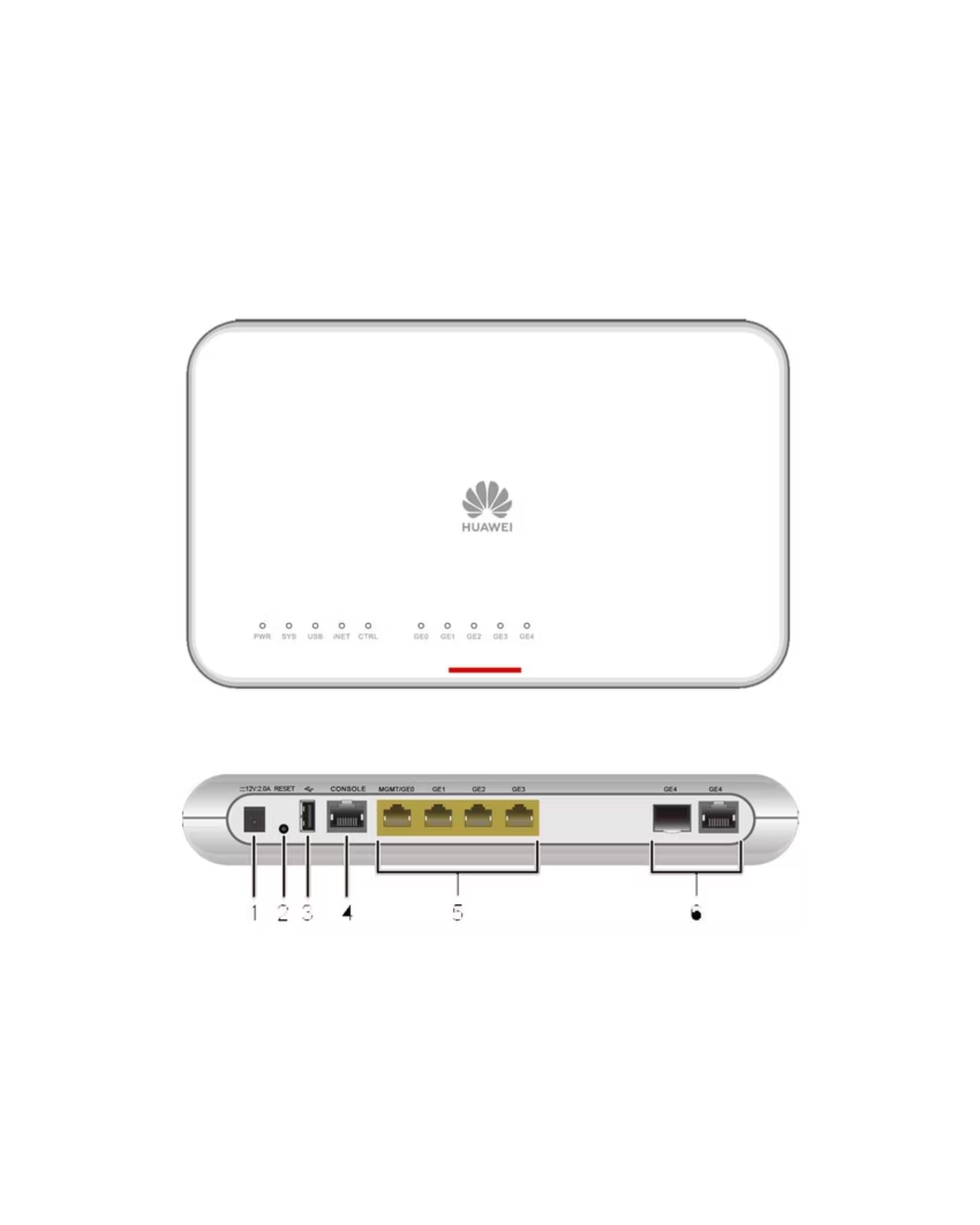

Figure 2-3 Components of the AR303
|
1. Power jack |
2. RESET button
NOTE:
This button is used to reset the router.
If needed, you can run the factory-configuration prohibit command in the system view to disable the function of restoring the factory settings by holding down the RESET button. To enable this function again, run the undo factory-configuration prohibit command. |
3. USB interface 2.0 (host) |
|
4. Console interface |
5. LAN interfaces: four GE electrical interfaces |
6. WAN interface: GE combo interface |
Ports
Table 2-4 Ports on the AR303
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| USB interface 2.0 (host) | USB 2.0 Type A |
A USB interface provides up to 480 Mbit/s upload and download rates.
|
USB 2.0-compliant USB flash drive |
| Console interface | RJ45 |
The console interface can connect to an operation terminal for onsite configuration.
|
|
| LAN interfaces: four GE electrical interfaces | RJ45 |
A GE electrical interface (10/100/1000 Mbit/s auto-sensing) transmits and receives services at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s.
NOTE:
GE0 is a management interface and is used for web-based management and email-based deployment. All LAN-side GE interfaces can be configured as WAN-side interfaces. |
|
| WAN interfaces: GE combo interfaces |
GE electrical interface: RJ45 GE optical interface: LC/PC |
A GE combo interface consists of an optical Ethernet interface and an electrical Ethernet interface on the panel. The two interfaces have only one internal forwarding interface. The electrical and optical interfaces are multiplexed, and only either of them can work at a time. When either of the Ethernet interfaces is working, the other interface is shut down.
NOTE:
By default, a combo interface works in auto mode and automatically works as an optical or electrical interface. |
The following optical modules are supported: |
Indicators and Buttons
Figure 2-4 Indicators and buttons on the AR303
|
1. PWR indicator |
2. SYS indicator |
3. USB indicator |
|
4. iNET indicator |
5. CTRL indicator |
6. LAN (GE0 to GE3) interface indicators |
|
7. GE combo interface indicator (GE4) |
- |
- |
Table 2-5 Indicators on the AR303
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| PWR | PWR indicator | Green | Steady on | The system power supply is normal. |
| - | Off | The system power is off. | ||
| SYS | SYS indicator | Green | Slow blinking | The system is running properly. |
| Green | Fast blinking | The system is being powered on or restarting. | ||
| Red | Steady on | A fault that affects services has occurred. The fault cannot be rectified automatically and requires manual intervention. | ||
| - | Off | The system software is not running or is resetting. | ||
| USB | USB indicator | Green | Steady on | The system has been upgraded or configured using a USB flash drive. |
| Green | Blinking | The system is being upgraded or configured using a USB flash drive. | ||
| Red | Steady on | The system fails to be upgraded or configured using a USB flash drive. | ||
| - | Off | No USB flash drive is connected, the USB interface has failed, or the indicator has failed. | ||
| iNET | iNET indicator | Green | Steady on | The network service has been established. |
| - | Off | The network service is unavailable. | ||
| CTRL | CTRL indicator | Green | Steady on | The device has been connected to the controller. |
| - | Off | The device is not connected to the controller. | ||
| GE0 to GE3 | LAN interface indicator (GE0 to GE3) | Green | Steady on | A link has been established on the corresponding LAN interface. |
| Green | Off | Data is being transmitted or received on the corresponding LAN interface. | ||
| Green | Blinking | No link is established on the corresponding LAN interface. | ||
| GE4 | GE combo interface indicator (GE4) | Green | Steady on | A link has been established on the corresponding GE combo interface. |
| Green | Blinking | Data is being transmitted or received on the corresponding GE combo interface. | ||
| - | Off | No link is established on the corresponding GE combo interface. |
Table 2-6 Buttons on the AR303
| Silkscreen | Name | Description |
|---|---|---|
| RESET | RESET button |
This button is used to reset the router.
|
Technical Specifications
Table 2-7 Technical specifications of the AR303
| Item | Specification |
|---|---|
| Installation type |
|
| Chassis height [U] | 1 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 370 mm x 297 mm (3.54 in. x 14.57 in. x 11.69 in.) |
| Weight with packaging [kg(lb)] | 1.18 kg (2.60 lb) |
| Weight without packaging [kg(lb)] | 0.58 kg (1.28 lb) |
| CPU | 1.1 GHz, 2 Cores |
| Memory | 1 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 4 x GE electrical interfaces |
| WAN ports | 1 x GE Combo WAN |
| Number of service board slots | 0 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 0/0 |
| WSIC slots (default/maximum) | 0/0 |
| XSIC slots (default/maximum) | 0/0 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 62.60 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999963529 |
| Typical power consumption [W] | 9 W |
| Maximum power consumption [W] | 12 W |
| Power supply mode | AC power adapter |
| Number of power modules | 1 |
| Rated input voltage [V] | 110 V to 220 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 270 V, 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Maximum output power [W] | 24 W |
| Redundant power supply | Not supported |
| Types of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode | Natural heat dissipation |
| Airflow | Natural heat dissipation |
| Noise at normal temperature (acoustic power) [dB(A)] | 0 (Natural heat dissipation) |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F)
NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
